When solving problems related to the trajectory of objects, it’s important to separate horizontal and vertical components of the path. The horizontal velocity remains constant while the vertical velocity is affected by gravity.
Start by identifying key variables such as initial velocity, launch angle, and time. These will be used to break down the motion into separate calculations for horizontal distance and vertical displacement.
To calculate the time an object remains in the air, use the equation based on vertical motion, and then apply it to find the horizontal distance traveled. This step-by-step approach helps simplify complex problems and ensures accurate results.
Always check for common errors, such as neglecting the effects of gravity or mixing up horizontal and vertical components. Pay close attention to the units of measurement to avoid mistakes in calculations.

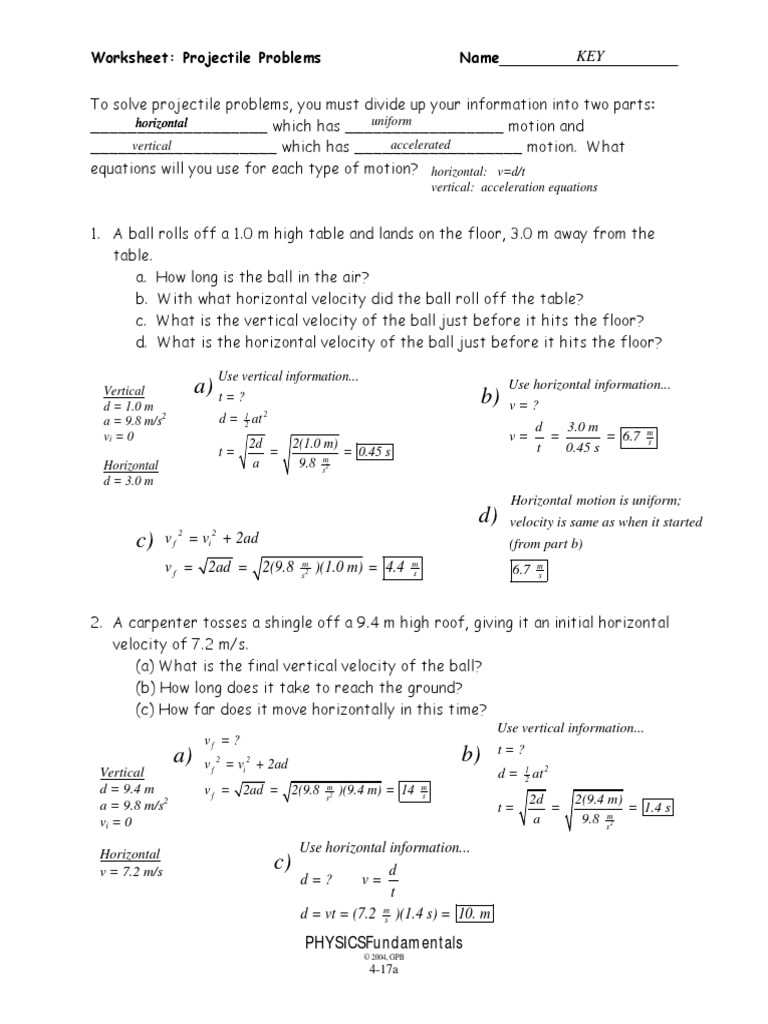

AP Physics Projectile Motion Worksheet
To solve problems involving the flight path of an object, separate the horizontal and vertical motions. The horizontal speed remains constant, while gravity influences the vertical component.
Start by identifying initial velocity, angle of release, and gravitational acceleration. Use these variables to calculate time of flight, maximum height, and horizontal range. The key is applying kinematic equations to each direction independently.
For vertical motion, use the equation for displacement, considering the acceleration due to gravity. For horizontal motion, the distance is calculated by multiplying horizontal velocity by time of flight.
Double-check your results by ensuring the time of flight is used correctly for both vertical and horizontal calculations. Don’t forget to apply the correct units for each variable to avoid any conversion errors.
Understanding Key Variables in Projectile Motion
When analyzing the flight of an object, it is crucial to understand the role of several key variables. These include initial speed, launch angle, time of flight, maximum height, and horizontal range. Each of these affects how the object moves through space.
Initial Velocity: This is the object’s starting speed, typically broken down into horizontal and vertical components. The horizontal velocity remains constant, while the vertical velocity is influenced by gravity.
Launch Angle: The angle at which the object is launched determines the shape of its trajectory. A higher angle results in a steeper rise and fall, while a smaller angle leads to a flatter path.
Time of Flight: This is the total time the object stays in the air. It depends on the initial vertical velocity and gravitational acceleration. Time of flight can be calculated using the vertical motion equation.
Maximum Height: The highest point the object reaches. It is determined by the vertical component of the initial velocity and the effect of gravity. The maximum height is reached when the vertical velocity becomes zero.
Horizontal Range: The total horizontal distance traveled by the object. This depends on the time of flight and the object’s horizontal velocity. The range is independent of the object’s mass or shape.
Step-by-Step Guide to Solving Projectile Motion Problems
To solve problems involving the flight of an object, follow these steps:
- Identify known variables: Write down the given values, such as initial velocity, launch angle, and any other relevant information (e.g., time, height, or distance).
- Break velocity into components: Resolve the initial velocity into horizontal and vertical components. Use the following formulas:
- Horizontal component: vx = v0 * cos(θ)
- Vertical component: vy = v0 * sin(θ)
- Apply kinematic equations: Use appropriate equations for vertical and horizontal motion separately. For vertical motion, use gravity and the initial vertical velocity to find time or maximum height. For horizontal motion, use the constant horizontal velocity to find range.
- Calculate the time of flight: For vertical motion, calculate the time it takes for the object to reach the ground using the equation:
t = 2 * vy / g
where g is the acceleration due to gravity (9.8 m/s²).
- Determine maximum height: To find the peak height of the object’s path, use the equation:
h = (vy)² / (2 * g). - Find the horizontal range: The total horizontal distance covered by the object is found using the equation:
R = vx * t. - Check your units: Ensure that all units are consistent (e.g., meters, seconds) and convert them as needed.
How to Calculate Time of Flight in Projectile Motion
To find the time an object stays in the air, use the following method:
- Identify the vertical component of initial velocity: Resolve the initial velocity into its vertical component using the formula:
vy = v0 * sin(θ)
where v0 is the initial speed and θ is the launch angle.
- Use the kinematic equation for vertical motion: To determine the time the object takes to reach the ground, use the following formula for vertical displacement:
y = vy * t – (1/2) * g * t²
where y is the displacement (usually 0 if the object lands at the same height from which it was launched), g is the acceleration due to gravity (9.8 m/s²), and t is the time.
- Find the time of flight: For objects launched and landing at the same height, the total time of flight can be calculated with the equation:
t = (2 * vy) / g
This equation accounts for both the ascent and descent of the object.
- Ensure proper units: Double-check that your units for velocity are in meters per second (m/s) and time in seconds (s). If the units are not consistent, convert them accordingly.

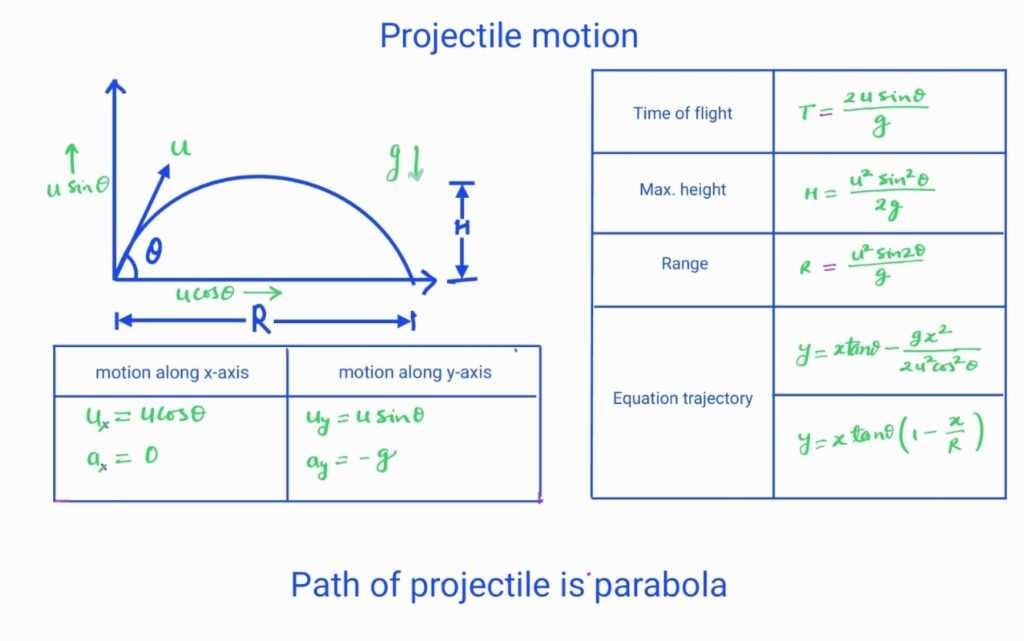

Analyzing the Horizontal and Vertical Components of Motion
The horizontal and vertical components of an object’s flight are treated independently. The horizontal component is constant throughout the object’s trajectory, while the vertical component changes due to gravity.
Horizontal Component:
The horizontal velocity remains constant because no external horizontal forces (ignoring air resistance) act on the object. To calculate the horizontal distance traveled, use:
Δx = vx * t
where vx is the horizontal velocity, and t is the time of flight.
Vertical Component:
The vertical motion is influenced by gravity. The initial vertical velocity is given by:
vy0 = v0 * sin(θ)
As the object rises and falls, its vertical velocity decreases due to gravity on the ascent and increases on the descent. The vertical displacement is calculated using:
y = vy0 * t – ½ * g * t²
where g is the acceleration due to gravity.
Independent Motion:
Treat the horizontal and vertical movements as separate motions:
- The horizontal velocity is unaffected by gravity, so it remains constant.
- The vertical velocity changes due to gravitational acceleration, with the object accelerating downward at 9.8 m/s² (assuming Earth’s gravity).
By separating the horizontal and vertical components, you can more easily calculate the position and velocity at any given point in the object’s trajectory.
Common Mistakes to Avoid in Projectile Motion Problems
Avoiding these common mistakes will help you approach problems more effectively:
- Ignoring the Independence of Horizontal and Vertical Components:
Always treat the horizontal and vertical motions as separate and independent. The horizontal velocity remains constant, while the vertical velocity is affected by gravity.
- Forgetting to Account for Gravity:
Many forget that gravity only affects the vertical motion. Always include the acceleration due to gravity (9.8 m/s²) in the vertical calculations, especially for time and vertical displacement.
- Misunderstanding the Time of Flight:
The time an object spends in the air depends only on the vertical motion. Using the horizontal velocity to calculate time can lead to incorrect results.
- Incorrectly Using Angles:
Ensure that angles are properly broken down into their horizontal and vertical components. Use sin(θ) for vertical and cos(θ) for horizontal velocity.
- Overlooking Initial Vertical Velocity:
Don’t forget that the initial vertical velocity has an impact on how high an object will go and how long it will stay in the air. This velocity should always be calculated as part of the vertical component.
By avoiding these common mistakes, you can streamline your approach and reduce the likelihood of errors in solving problems.
