To properly represent atoms and their interactions, focus on placing electrons around the atom’s nucleus in a way that follows the octet rule. Begin by drawing the atomic symbols and then add valence electrons as dots. Make sure to correctly pair electrons for bond formation, taking into account the number of bonds each element tends to form.
For example, hydrogen forms a single bond by sharing its one electron, while oxygen shares two electrons to form a double bond. Ensure that all elements satisfy the rule of having eight electrons in their valence shell (except for hydrogen, which only requires two). This helps in accurately predicting how different atoms will combine in molecules.
Common errors to watch out for include incorrectly pairing electrons or failing to account for multiple bonds in molecules like oxygen or nitrogen. Practice with a variety of examples, ensuring to check if the final electron arrangement adheres to both the octet rule and known bonding preferences of the elements involved.
Once you are familiar with this process, you can start to predict the shapes and stability of molecules by considering the electron distribution and the resulting bonding patterns. This skill is key for understanding chemical reactions and molecular behavior in more complex compounds.

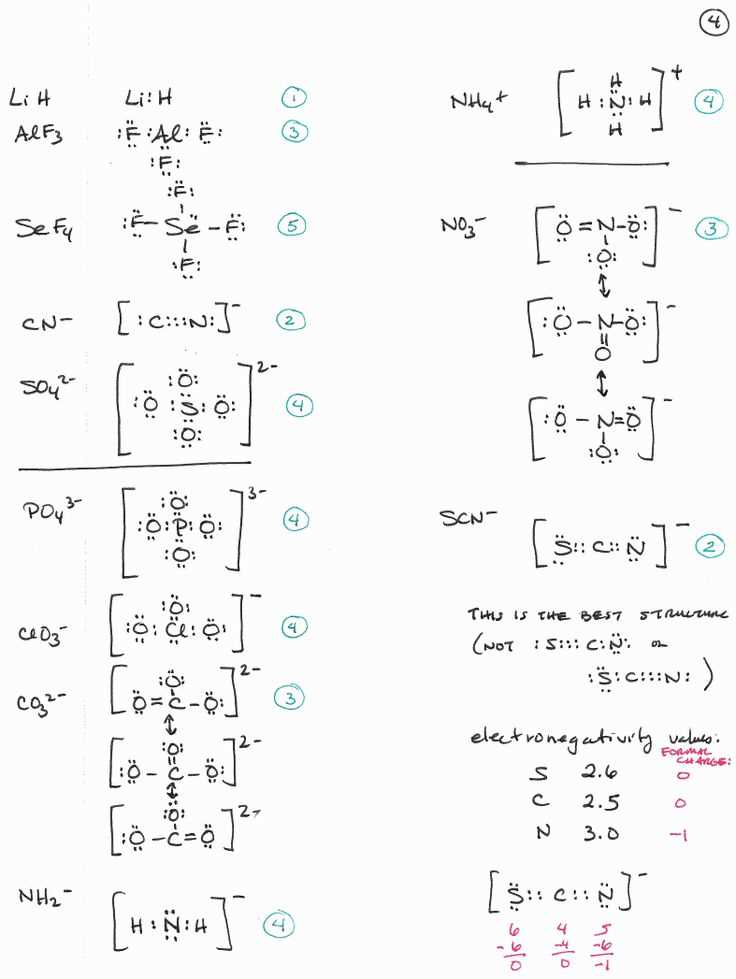

Creating Accurate Electron Dot Diagrams for Chemical Compounds
Begin by drawing the symbol of each atom involved. For each atom, count the number of valence electrons it has based on its position in the periodic table. Next, place these electrons around the atomic symbol as dots. Always remember that the maximum number of electrons an atom can share to form a bond is determined by how many electrons are in its outer shell.
Ensure that atoms with more than one valence electron can form multiple bonds. For instance, oxygen can form two bonds by sharing two electrons, while nitrogen typically forms three bonds, using three of its valence electrons. This pairing should be represented as lines between the atoms in your diagram.
After completing the bonding, check whether the atoms meet the octet rule (except hydrogen, which requires only two electrons). If needed, adjust the electron pairs to create multiple bonds, like double or triple bonds, until all atoms in the molecule have filled their valence shells as much as possible.
Test your understanding by practicing with different compounds. Try to predict the number of bonds and the overall electron distribution based on known bonding rules. This will help solidify your skills in constructing electron dot diagrams for more complex molecules.
How to Draw Electron Dot Diagrams for Simple Compounds
Start by identifying the elements involved in the compound. Determine the number of valence electrons for each atom based on its group number in the periodic table. For example, carbon has 4 valence electrons, oxygen has 6, and hydrogen has 1.
Next, arrange the atoms, placing the least electronegative atom in the center. Hydrogen atoms should always be placed on the outside, as they can form only one bond. Connect the atoms with single lines to represent shared electrons. Each line corresponds to a pair of electrons.
After connecting the atoms, fill in the remaining electrons around each atom to complete their octet (except for hydrogen, which needs only 2 electrons). If an atom does not have enough electrons to complete its octet, form double or triple bonds by moving electron pairs between atoms.
| Example | Steps |
|---|---|
| Water (H₂O) | Place O in the center, attach 2 H atoms, then add electron pairs around O to satisfy its octet. Each H will form a single bond with O. |
| Carbon Dioxide (CO₂) | Place C in the center, attach 2 O atoms with double bonds, then fill in remaining electrons around O atoms. |
Double-check that each atom has the correct number of electrons and that all atoms have complete valence shells. Practicing this process with different simple molecules will improve your understanding of how atoms bond and share electrons.
Understanding Octet Rule and Its Application in Electron Dot Diagrams
The octet rule states that atoms tend to form bonds in such a way that they each have eight electrons in their valence shell, mimicking the electron configuration of noble gases. This rule is fundamental when determining how atoms combine to form stable compounds. Hydrogen is an exception, as it only requires two electrons to fill its valence shell.
When drawing diagrams, first identify the number of valence electrons for each atom. Then, connect the atoms with single bonds, placing electron pairs around the atoms to complete their valence shells. If an atom has fewer than eight electrons, it will form additional bonds by sharing more electron pairs with neighboring atoms.
For example, in a molecule of water (H₂O), oxygen has six valence electrons and needs two more to complete its octet. It forms two single bonds with two hydrogen atoms, each sharing one electron. Hydrogen achieves a full shell by pairing its single electron with oxygen’s electrons.
For molecules like carbon dioxide (CO₂), carbon has four valence electrons, while oxygen has six. To satisfy the octet rule, carbon forms double bonds with each oxygen atom, sharing two electron pairs with each oxygen to complete both the carbon and oxygen octets.
Always verify that all atoms in the molecule are surrounded by the correct number of electrons. If any atom has fewer than eight electrons, adjust the bonds by adding double or triple bonds, ensuring all atoms adhere to the octet rule (except hydrogen).
Common Mistakes When Drawing Electron Dot Diagrams and How to Avoid Them
One common mistake is failing to count the total number of valence electrons before starting the diagram. Always add up the electrons from all atoms involved to ensure you have the correct total. Missing electrons can lead to incorrect bonding or incomplete diagrams.
Another frequent error is placing too many or too few electron pairs around atoms. For example, hydrogen only requires two electrons to complete its shell, while oxygen requires eight. Be sure to follow the octet rule, except for hydrogen, which needs just two electrons in its valence shell.
Incorrectly assuming that all bonds are single is also a common mistake. Many molecules, like oxygen (O₂) or carbon dioxide (CO₂), require double or triple bonds to satisfy the octet rule. Double-check the number of bonds each atom can form based on its valence electrons.
Another issue arises when not properly completing the electron shells of atoms in the outer positions. After forming bonds, ensure all atoms have a complete shell of electrons. If necessary, create double or triple bonds by redistributing electron pairs.
Lastly, avoid ignoring formal charges when drawing more complex molecules. Always check if atoms in your diagram have formal charges, as this can affect the molecule’s stability. If atoms have formal charges, consider rearranging bonds or electron pairs to minimize these charges.
How to Determine the Shape of a Compound from Electron Dot Diagrams
To determine the shape of a compound, begin by counting the number of bonding and non-bonding electron pairs around the central atom. The total number of electron pairs will dictate the geometry of the molecule.
For example, if the central atom has two bonding pairs, the shape will be linear. This occurs in molecules like carbon dioxide (CO₂). If there are three bonding pairs, the molecule will have a trigonal planar shape, as seen in compounds like boron trifluoride (BF₃).
When there are four bonding pairs, the geometry will be tetrahedral. Methane (CH₄) is a classic example of this shape. If some of the electron pairs are lone pairs, the geometry will adjust. For instance, water (H₂O) has two bonding pairs and two lone pairs, resulting in a bent shape instead of tetrahedral.
To predict these shapes, apply the Valence Shell Electron Pair Repulsion (VSEPR) theory. This theory states that electron pairs around a central atom will arrange themselves as far apart as possible to minimize repulsion. Lone pairs take up more space than bonding pairs, which can distort the shape of the molecule.
Finally, consider the presence of multiple bonds, as these may slightly alter the predicted geometry. However, the basic principles of electron pair repulsion will still apply when determining the overall shape of the molecule.
Practice Problems for Mastering Electron Dot Diagrams and Chemical Bonds
To strengthen your skills, practice the following problems, ensuring you follow the steps for determining electron pairs, forming bonds, and adhering to the octet rule.
- Problem 1: Draw the diagram for ammonia (NH₃). Determine the number of bonding pairs and lone pairs on nitrogen.
- Problem 2: Draw the diagram for methane (CH₄). Identify the geometry of the molecule based on the electron arrangement.
- Problem 3: Draw the diagram for carbon dioxide (CO₂). How many bonds does carbon form, and what is the shape of the molecule?
- Problem 4: Draw the diagram for hydrogen fluoride (HF). Check if hydrogen follows the octet rule and explain the bonding.
- Problem 5: Draw the diagram for formaldehyde (CH₂O). Identify any double bonds and discuss how the octet rule is satisfied.
After completing the diagrams, verify that all atoms have their correct number of electrons, and that bonding follows known principles such as multiple bonds where necessary. Also, double-check whether formal charges are needed for accuracy.
- Practice identifying if a molecule needs a double or triple bond.
- Test your understanding of how lone pairs affect the shape and bonding in the molecule.
- Make sure to draw the geometry of the molecule after completing the electron diagram.
Regular practice with such problems will help solidify your understanding of how atoms share electrons to form stable compounds and help you become proficient in predicting molecule shapes and behavior.
