Use the official pilot operating handbook tables to compute total mass, arm values, plus center location before each flight. Enter crew mass, fuel volume, baggage load, then verify limits within the normal category envelope.
Fuel input should reflect usable gallons only, multiplied by standard aviation fuel mass per gallon. Seat stations require accurate arm data from the aircraft manual, not estimates or memory.
Plot the final center location on the approved graph using straight reference lines. Any point outside the envelope requires load adjustment through fuel reduction or baggage removal prior to engine start.
Practice pages like this help student pilots reduce math errors, improve chart reading speed, plus build confidence for checkride oral questions related to load planning.

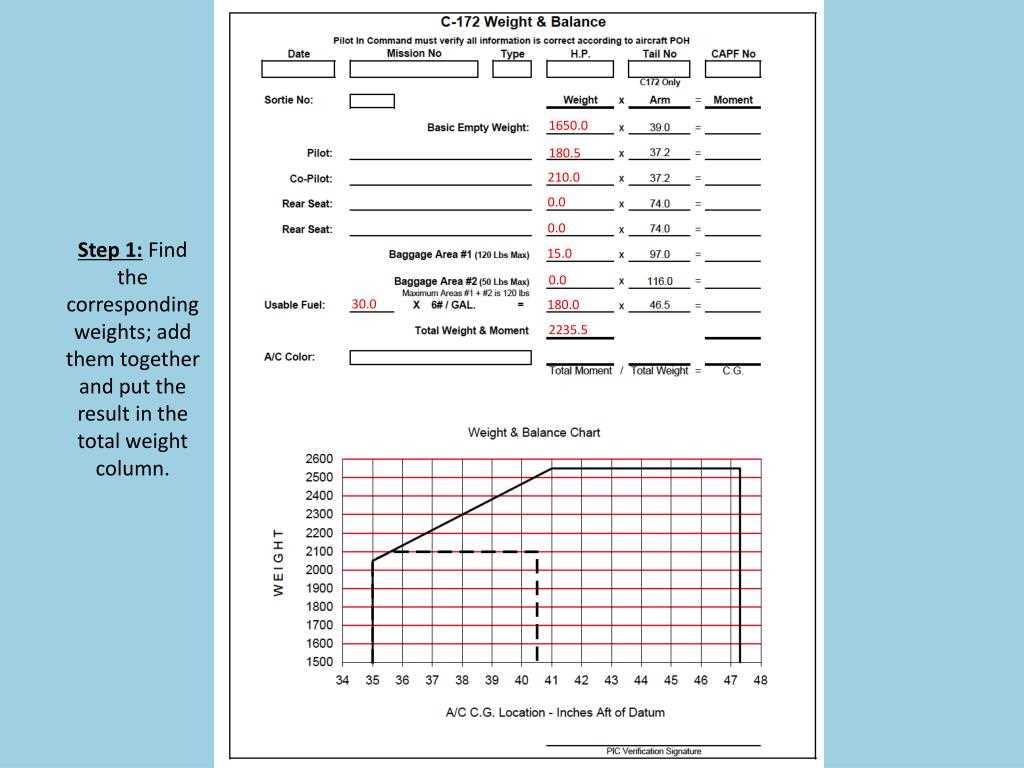

172S Load Distribution Calculation Practice Sheet
Record all mass inputs directly from the aircraft handbook tables, then verify each station arm before any math steps. Crew seating, fuel quantity, plus baggage zones must match the serial-specific data page.
Convert fuel volume into mass using standard aviation fuel values, then multiply each load by its arm to obtain moment figures. Sum totals carefully to avoid chart placement errors.
| Load Station | Mass Value | Arm Distance | Moment Result |
|---|---|---|---|
| Pilot Seat | 170 lb | 37 in | 6,290 |
| Fuel Tanks | 228 lb | 48 in | 10,944 |
| Baggage Area | 40 lb | 95 in | 3,800 |
Plot the final center point using straight reference lines on the approved envelope chart. Any value outside limits requires load revision before engine start.
Understanding C172S Aircraft Load Limits With Arm Stations
Check maximum allowable load values from the pilot operating handbook before adding crew, fuel, or baggage figures. Exceeding published caps invalidates any further math.
Locate each arm station precisely as listed in the aircraft data section. Front seating, fuel tanks, rear storage areas each use fixed reference distances measured from the datum.
- Front seating station commonly sits near 37 inches aft of datum
- Fuel storage typically aligns close to 48 inches aft of datum
- Rear cargo zones often extend beyond 90 inches aft of datum
Apply each station distance consistently during moment calculations. Mixing values from different serial ranges leads to center point errors.
Cross-check totals against the approved envelope chart after all figures align with handbook limits. Any out-of-range result requires load redistribution prior to flight.
Step by Step Load Calculation for Crew Fuel Plus Baggage
Use the aircraft handbook tables to note occupant mass, usable fuel quantity, plus cargo figures before any math occurs. Each value must match the current equipment list.
Multiply every load figure by its assigned arm distance to obtain moment results. Keep units consistent across all entries to prevent numeric drift.
Add all load values into a single total, then add all moment results into one sum. Divide the combined moment figure by the combined load figure to locate the center point.
Compare the calculated center point against the approved envelope chart for the planned category. Any point outside published limits requires cargo relocation or fuel reduction prior to dispatch.
Center of Gravity Chart Use for Normal Category Operations
Plot the calculated center point on the approved chart using total load on the vertical scale plus arm position on the horizontal scale. Accuracy depends on matching units shown on the diagram.
Confirm the plotted point stays inside the normal category boundary throughout taxi, departure, cruise, plus landing phases. Fuel burn shifts the center point rearward, so check both ramp plus landing values.
Use straight line interpolation between grid markers rather than visual estimates. This approach reduces placement error, especially near aft or forward limits.
Apply cargo relocation or fuel quantity adjustment if the plotted point crosses any boundary. Replot after each change to verify compliance before flight release.
Common Calculation Errors During C172S Load Planning
Verify unit consistency before any math step. Mixing pounds with kilograms or inches with centimeters leads to invalid totals that shift the reference point outside permitted limits.
Check fuel quantity entries against actual usable volume. Relying on rounded values rather than measured gallons creates cumulative deviation during longer legs.
Reconfirm station arms for crew seating plus baggage zones using the aircraft manual. Substituting figures from similar models results in misplaced moment values.
Avoid skipping intermediate moment sums. Each load item requires its own multiplication result prior to aggregation, otherwise final placement becomes unreliable.
Repeat all math after load changes. A single passenger swap or cargo relocation demands a full recalculation rather than partial adjustment.
