To approach electrical problems with confidence, focus on mastering key concepts like Ohm’s Law and the behavior of different components. Start with simple calculations involving voltage, current, and resistance. For example, if you know two values, you can easily find the third using the formula V = I × R.
Next, pay attention to how components such as resistors, capacitors, and inductors interact within a setup. Understanding their functions and how they affect current flow will help you analyze and troubleshoot basic systems. For instance, resistors limit current flow, capacitors store energy, and inductors resist changes in current.
Finally, practice solving real-world problems. Whether it’s determining the total resistance in a series or parallel setup or calculating the current passing through a given path, hands-on exercises will sharpen your skills. Work through these problems step by step, ensuring that each unit conversion and calculation is accurate.
Basic Problem Solving in Electrical Systems
To solve electrical problems efficiently, begin by applying Ohm’s Law to calculate voltage, current, and resistance. For instance, if you know the voltage (V) and resistance (R), you can calculate the current (I) using the formula I = V / R.

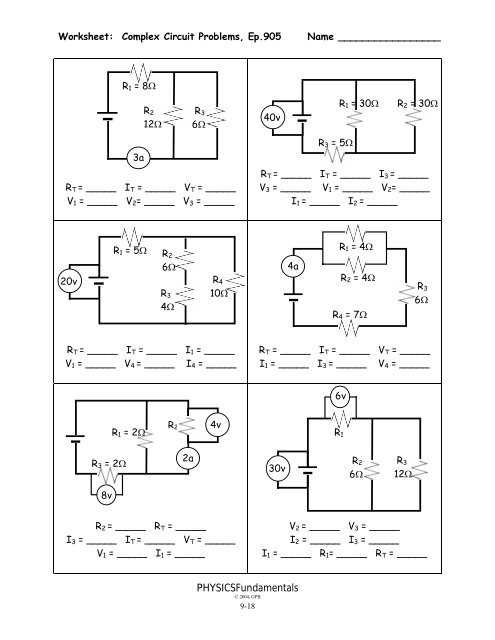

Next, analyze the setup of the components. For series configurations, the total resistance is the sum of individual resistances: R_total = R1 + R2 + … . In parallel configurations, the total resistance can be found using the formula 1/R_total = 1/R1 + 1/R2 + … . These basic formulas will allow you to determine how the current will behave in different scenarios.
Additionally, pay attention to power calculations. The power consumed in a circuit can be calculated using the formula P = V × I. This is particularly useful when determining the energy used by a component in a system. Be sure to double-check units when working through these problems to ensure accurate results.
How to Solve Basic Electrical Problems Involving Ohm’s Law
To solve problems involving voltage, current, and resistance, begin by identifying which values are given and which need to be calculated. Use Ohm’s Law, V = I × R, to relate the three variables. If you know the voltage and resistance, calculate current by rearranging the formula to I = V / R.
For example, if a resistor with a resistance of 5 ohms is connected to a 10-volt battery, the current can be found by dividing the voltage by the resistance: I = 10V / 5Ω, which equals 2 amps.
If you are given the current and need to find the voltage, simply rearrange the formula to V = I × R. For instance, if the current is 3 amps and the resistance is 4 ohms, the voltage is V = 3A × 4Ω, giving you 12 volts.
In cases where you need to determine resistance, rearrange Ohm’s Law to R = V / I. For example, if the voltage is 12 volts and the current is 4 amps, the resistance is R = 12V / 4A, which equals 3 ohms.
Practical Examples for Identifying Electrical Components and Their Functions
Resistors limit the flow of electric current in a circuit. For example, in a simple setup with a 9V battery and a resistor, the resistor reduces the amount of current passing through the system to prevent damage to other components.
Capacitors store and release electrical energy. In a timing circuit, capacitors are used to control the duration of a signal. For example, a 100µF capacitor can delay a circuit’s response, allowing a certain amount of time for charge to accumulate before discharging it.
Inductors store energy in a magnetic field when current flows through them. They are often used in filters or transformers. For instance, an inductor in a power supply helps smooth out voltage fluctuations by resisting sudden changes in current.
Diodes allow current to flow in only one direction. In a basic setup, a diode ensures that the current flows from the positive side of a battery to the negative side, preventing reverse current flow that could damage sensitive components like LEDs.
