Start by understanding the basic principles of light passing through a curved surface. Begin with simple exercises that focus on constructing accurate visual representations of light’s behavior. Using a focal point, optical axis, and object placement, students should practice drawing multiple rays and noting their intersections.
To master this concept, students need to draw clear lines that represent the path of light through a lens, and identify where the light converges or diverges based on the object’s position relative to the focal length. Regular practice with different distances and angles will reinforce these core ideas.
Once the foundation is clear, challenge learners with complex variations of the exercise, adding layers of difficulty such as altering the lens curvature or adjusting the object’s position further. By doing so, students will develop a deeper understanding of image formation and its relationship with the optical properties of the lens.

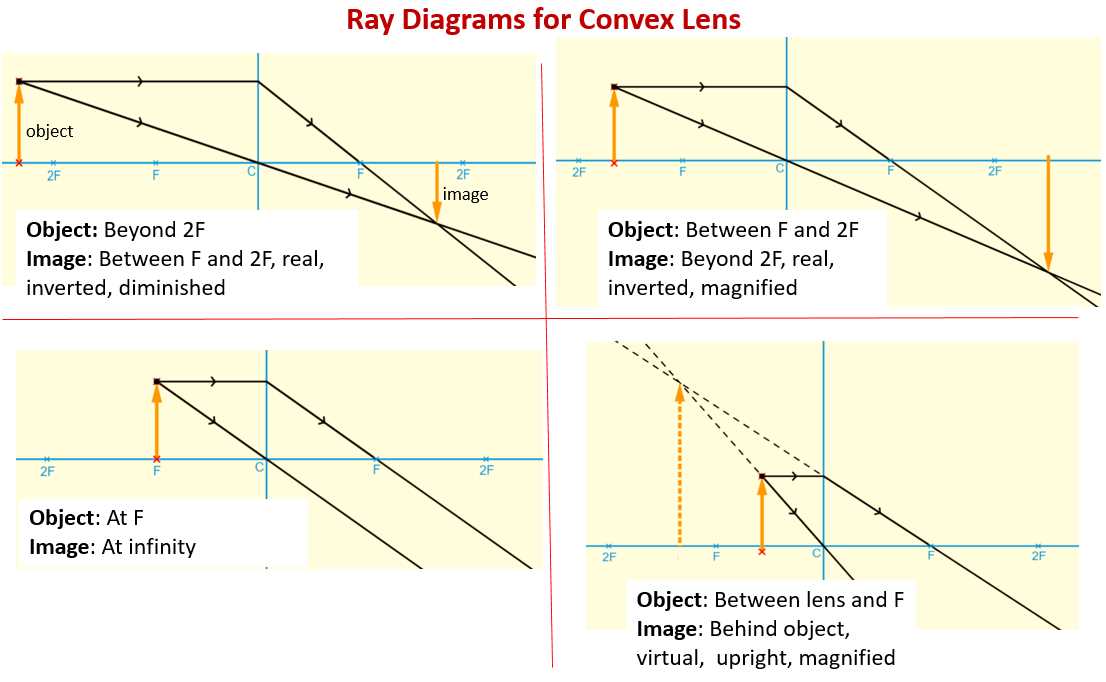

Convex Lens Ray Diagram Worksheet
Start with the basic setup for the optical system, ensuring that students draw the optical axis and focus points clearly. Position the object at different distances from the lens and guide students to trace the light rays. These rays should start from the object and pass through the optical system, converging at a specific point on the other side.
In each task, have students identify and label the principal rays that are used in constructing the image. These include the ray parallel to the optical axis, the ray through the focal point, and the ray passing through the center of the lens. It’s important to practice drawing these rays accurately for clarity.
Once the basic rays are drawn, students should observe the image formed by the intersection of these rays. Depending on the object’s position, they should be able to predict whether the image is real or virtual, and whether it is upright or inverted. Make sure that learners regularly practice with various object placements to understand how the image changes with distance.
Step-by-Step Guide to Drawing Ray Diagrams for Convex Lenses
Begin by drawing the optical axis, a horizontal line through the center of your diagram. Mark the principal focus points on both sides of the lens, ensuring they are equidistant from the center. These points are key to constructing the rays that will define the image.
Next, place the object along the optical axis, making sure it is positioned at different distances from the lens for various exercises. The closer the object, the more complex the resulting image will be. Draw the object as an arrow, which will represent the point where light rays diverge.
Now, start with the first ray: draw one parallel to the optical axis that hits the lens. After striking the lens, it will refract and pass through the focal point on the opposite side. This ray is essential for determining the image position.
For the second ray, draw one passing through the center of the lens. This ray will continue in a straight line without bending. The intersection of this ray with the other rays will help form the image position.
The third ray can be drawn from the object through the focal point on the object side of the lens. Upon passing through the lens, this ray will exit parallel to the optical axis, which will help confirm the image orientation.
Finally, after drawing these rays, locate their intersection point. This point will give you the position of the image. Depending on the object’s distance from the lens, you can observe whether the image is real or virtual, upright or inverted, and magnified or reduced.
Common Mistakes in Convex Lens Ray Diagrams and How to Avoid Them
A frequent mistake is misplacing the focal points. Always ensure the focal points are equidistant from the center of the lens on both sides. Inaccurately positioning these points can lead to incorrect image formation.
Another error occurs when rays are not properly refracted. For example, rays that should pass through the focal point after hitting the lens might not be drawn through it correctly. To fix this, double-check that each ray follows the proper path based on its interaction with the lens.
One common issue is failing to maintain the correct object distance. If the object is placed too close or too far from the lens, the resulting image can be unrealistic. Ensure the object is positioned correctly according to the scenario you’re analyzing for accurate results.
Incorrectly drawing parallel rays or failing to use all three key rays for creating the image is another mistake. Make sure to use the parallel, center, and focal-point rays to fully determine the image’s location and characteristics.
Lastly, a frequent problem is ignoring the virtual image scenario. In some cases, particularly when the object is inside the focal length, the image will be virtual and upright. Recognize when this occurs, and avoid assuming all images are real and inverted.
Interactive Exercises to Practice Convex Lens Ray Diagrams
Use online simulations that allow you to adjust the object’s position and immediately see how the image changes. These tools help visualize the relationship between object distance, focal point, and image formation.
- Interactive Software: Platforms like PhET Interactive Simulations offer a hands-on approach where you can manipulate various parameters and track how the light behaves as it passes through the optical system.
- Interactive Quizzes: Engage with quizzes that provide instant feedback on your drawing accuracy. They guide you through correct positioning of rays and identifying the type of image (real or virtual).
- Virtual Labs: Participate in virtual lab exercises where you can simulate experiments and observe how light bends and focuses, reinforcing the concept of image formation in different setups.
After practicing with simulations, draw your own illustrations of the path the light takes. This can be a very useful method for improving spatial understanding and mastering the key steps of drawing accurate diagrams.
Using these interactive tools regularly will help you refine your understanding and ability to draw precise optical paths, making it easier to apply concepts during exams and in practical scenarios.
