To accurately determine the requirements for air conditioning in a building, it is crucial to assess various internal and external factors. Begin by identifying the size of the space, the number of windows, the type of insulation, and the presence of heat-generating appliances. Each of these elements contributes to the total heat the system must manage.
The first step is to measure the dimensions of the room or area that needs to be conditioned. Understanding how sunlight exposure impacts the space, especially during peak hours, is also key. Windows facing the sun may increase the need for temperature control, requiring adjustments to the system.
Next, evaluate the heat gain from internal sources such as equipment, lighting, and the number of people occupying the space. These sources add to the total heat the system must eliminate to maintain comfort. Use a structured approach to collect data, which will allow for precise adjustment of cooling capacity.
For more accuracy, leverage available software tools and reference guides to assist in interpreting the data gathered. These resources can help streamline the process and reduce the margin for error, ensuring the system is neither under- nor over-sized.
Cooling Load Calculation
Start by determining the total volume of the space you need to condition. Measure the length, width, and height of each room or area. For rooms with irregular shapes, break them into smaller sections, and calculate each separately before adding the results.
Next, assess the heat entering through windows, doors, and other openings. Consider the orientation of the windows and the amount of direct sunlight they receive. Larger windows or those facing the sun will increase the demand for temperature regulation.
Factor in the internal heat sources, such as the number of people in the space, electrical appliances, and lighting. Each of these generates heat, so you’ll need to calculate how much heat is being produced and add this to your calculations for accurate results.
Once you have the basic data, consult relevant cooling charts or use calculation software to get the precise capacity needed for your system. This ensures your air conditioning unit is appropriately sized for the space and usage.
Understanding the Basics of Cooling Load Calculation
To determine the required capacity for a temperature regulation system, begin by calculating the volume of the space. Measure the dimensions of the room: length, width, and height. For irregularly shaped spaces, divide them into smaller sections and calculate each one individually before adding them up.
Next, assess external heat influences. This includes direct sunlight through windows, which can significantly impact the overall need for temperature control. Larger windows or those facing the sun will contribute more heat, requiring greater cooling capacity.
Internal factors, such as the number of people occupying the space, lighting, and electronic devices, generate additional heat. You should account for each of these sources, as they all contribute to the overall heat load within the area.
Once all factors are considered, use a standard formula or specialized software to calculate the needed cooling capacity. This will ensure the system is correctly sized to handle the heat load efficiently, avoiding both under- and over-sizing.
Key Factors Affecting Cooling Load in Buildings
The size of the building is one of the most influential factors. Larger spaces require more energy for temperature regulation. The total volume, not just floor area, plays a significant role in determining the system’s capacity needs.
Building orientation also impacts heat absorption. South-facing structures typically experience more heat throughout the day due to direct sunlight, particularly in warmer months. Proper shading and window treatments can help reduce this impact.
The insulation quality of a building helps retain or expel heat, influencing the demand for temperature control. Poor insulation causes temperature fluctuations, making it harder to maintain a comfortable environment and increasing the need for cooling systems.
The type and number of windows in a building contribute significantly. Larger windows, or those made of materials with lower thermal resistance, allow more heat to enter the space. Choosing high-performance windows can reduce cooling requirements.
Internal heat gains from occupants, electronics, lighting, and appliances must be accounted for. More people and active devices increase the need for temperature control. These factors are often overlooked but can substantially raise the total requirement for energy-efficient climate regulation.
Step-by-Step Process for Cooling Load Calculation
Begin by assessing the total space that requires temperature control. Measure the volume of each room and factor in the ceiling height. Multiply the length, width, and height to determine the room’s volume, as larger spaces require more energy.
Next, account for the building’s orientation. Determine which walls and windows face direct sunlight during the hottest part of the day. The amount of sunlight directly impacts the cooling needs, so accurate orientation details are crucial.
Assess the building’s insulation. Calculate the R-value of the walls, roof, and windows. The higher the R-value, the better the material resists heat flow. Poor insulation leads to temperature swings, making cooling systems work harder.
Include the impact of internal heat sources. Identify how many people will occupy the space and any appliances or electronics that generate heat. Larger numbers of occupants or numerous electrical devices will increase the need for temperature control.
Finally, calculate the outdoor environmental conditions, such as outside air temperature and humidity. These factors influence the amount of energy required to maintain comfortable temperatures indoors. Adjustments may be needed based on the local climate.
Common Tools and Software for Cooling Load Estimation
Several tools and software solutions can simplify the process of determining temperature regulation needs for a building. These options range from detailed calculation tools to more user-friendly programs. Here are a few of the most widely used:
- Carrier HAP (Hourly Analysis Program) – This is a comprehensive software used to estimate both heating and cooling requirements based on building structure and environmental factors. It’s widely adopted for its accuracy and detailed reporting features.
- Trane Trace 700 – A powerful tool used by engineers to evaluate energy usage and comfort levels within buildings. Trane Trace is well-suited for complex structures, providing detailed simulations of temperature management needs.
- EnergyPlus – Developed by the U.S. Department of Energy, EnergyPlus is a simulation tool that calculates energy consumption, including the demand for air conditioning. It allows users to model both residential and commercial buildings.
- CoolCalc – This web-based tool is designed for contractors and provides simplified calculations for temperature management needs. CoolCalc is great for users seeking quick estimates without extensive knowledge of HVAC systems.
- eQUEST – A sophisticated energy modeling software that offers users the ability to analyze temperature control requirements. eQUEST integrates weather data and building specifications for accurate results.
Each of these tools offers a range of features to fit different needs. Selecting the best option depends on the complexity of the project and the level of detail required.

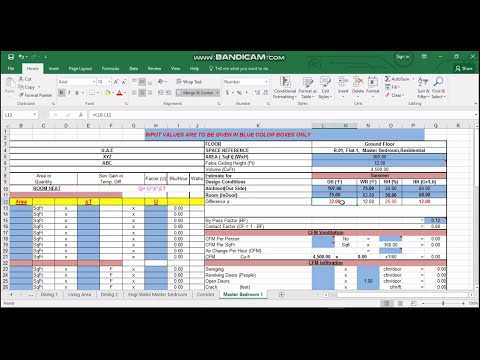

How to Use a Cooling Load Calculation Worksheet Correctly
To use a temperature regulation needs form effectively, start by gathering the necessary building data. This includes the dimensions of each room, the type of insulation, the number of windows, and the orientation of the building. Accurate measurements are critical for precise outcomes.
Next, fill in the specifics of each section of the form. Ensure that you enter the correct values for room areas, ceiling heights, and materials used in the construction. Incorrect entries here will lead to skewed results that do not reflect the actual conditions of the space.
After entering the basic information, input the environmental factors. This includes local climate conditions, the amount of sunlight the building receives, and internal heat sources such as lighting or equipment. These factors significantly impact the required cooling capacity.
Finally, once all fields are filled, review the calculations and results carefully. Double-check your numbers and ensure that the form’s outputs align with expected values based on your understanding of the space’s needs. In case of any discrepancies, revise the inputs and recalculate.
Using the form correctly helps estimate the required air circulation and refrigeration needs accurately, ensuring that the HVAC system can maintain comfortable indoor conditions while optimizing energy use.
