Set the tool to zero before each reading and confirm alignment against a reference block of known size. This step prevents scale offset and reduces reading errors that often exceed ±0.02 mm during repeated use.
Apply steady pressure when closing the jaws and keep the frame square to the part surface. Tilting the instrument by even a few degrees can shift the pointer and distort the value shown on the circular scale.
Record results in both millimeters and inches to build confidence with unit conversion. A common training target is maintaining variation within 0.01 mm across five consecutive checks on the same part.
Use short practice sets focused on outside dimensions, inner spans, and depth readings. Separating these tasks helps identify weak spots, such as misreading the rotating indicator or skipping full revolutions.
Consistent repetition with controlled reference parts builds accuracy faster than random checks, especially when each reading is reviewed and compared against the known standard.

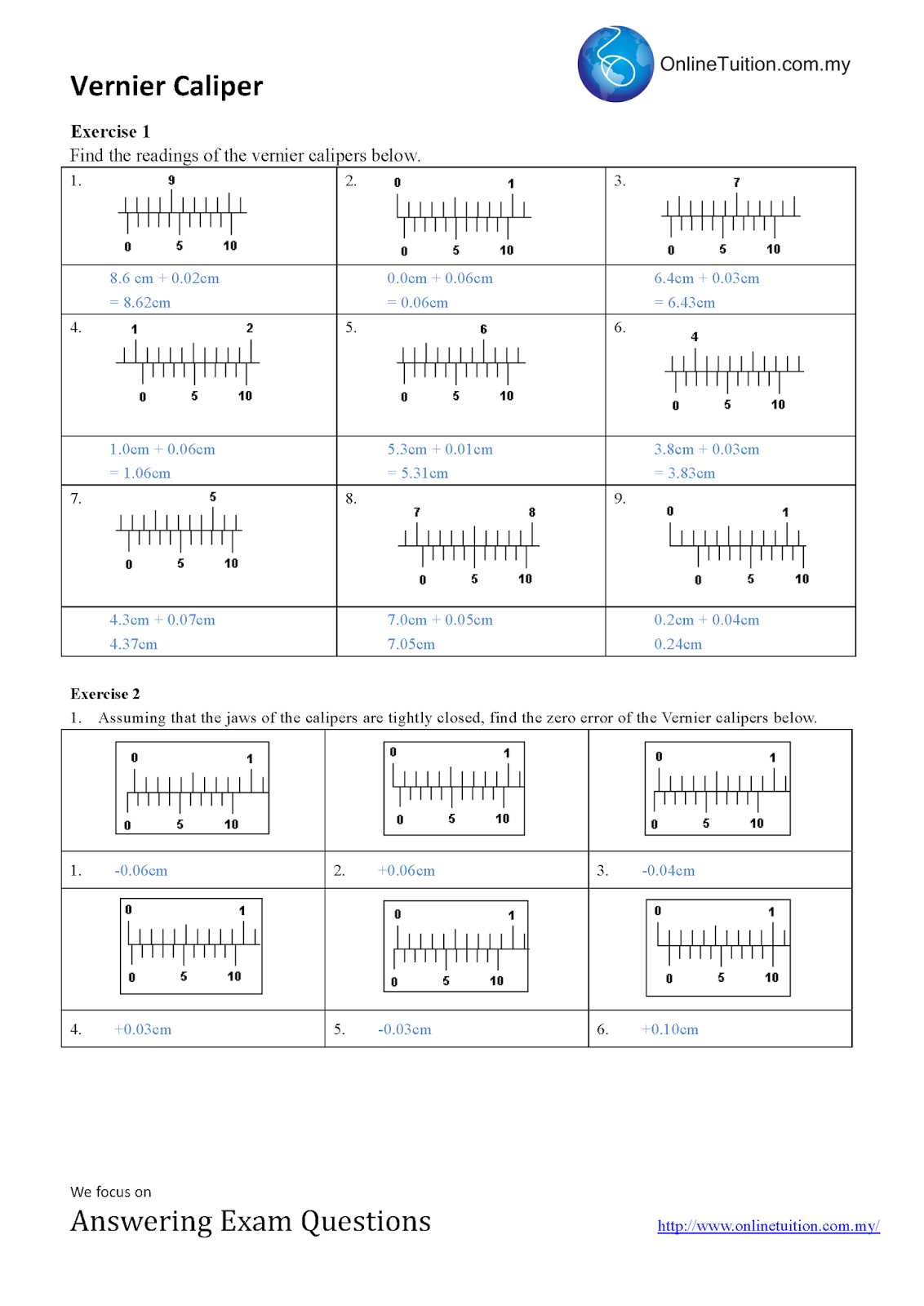

Practical Tasks for Reading Measurements with a Dial Caliper Scale Interpretation
Verify zero alignment before every reading by closing the jaws fully and checking that the pointer rests at zero on the circular face. If offset appears, adjust the bezel until alignment is exact.
Read values in two stages: note the main beam count first, then add the pointer value shown on the round indicator. This sequence prevents skipped divisions during fast checks.
- Outside size task: measure a steel block labeled 25.00 mm and record five readings, aiming for a spread under 0.01 mm.
- Inside span task: check a ring gauge with a stated inner size and confirm the pointer completes full rotations correctly.
- Depth check task: extend the depth rod into a slot and confirm the beam scale increases smoothly without jumps.
Track each result in a table with columns for beam count, pointer value, and total size. This layout helps spot rotation errors where a full turn equals 1.00 mm.
Repeat the same object after repositioning it between readings. Consistent results indicate correct scale interpretation rather than memorized values.
Identifying Main Beam and Circular Indicator Markings
Locate the long beam first and read its numbered divisions as whole units, where each mark usually equals 1 mm or 0.1 inch depending on the tool version.
Check the round indicator next and confirm that one full rotation matches a fixed beam increment, most often 1 mm or 0.100 inch. This relationship defines how partial values are added.
Count minor beam lines between numbered marks to confirm subdivision size. Many tools use ten short lines per major unit, each representing 0.1 of that unit.
Observe the circular face markings and note how many equal segments divide one full turn. A common layout shows 100 equal parts, meaning each pointer step equals 0.01 mm.
Verify alignment by closing the jaws and ensuring both the beam zero and pointer zero match. Any offset should be corrected before recording figures to avoid systematic error.
Reading External Dimensions with Sliding Jaws
Grip the part lightly between the outer jaws and close them until both faces touch the surface without force, keeping the frame square to the object.
Read the beam scale first to capture the full unit value, using the last visible numbered mark before the indicator reference line.
Add the pointer value from the circular gauge by noting which line aligns exactly with the reference mark, then convert that fraction into the same unit system.
Keep hand pressure consistent to avoid flex, especially on thin parts, since excess force can shift the reading by several hundredths.
Repeat the check at least twice and compare results; matching values confirm proper jaw contact and stable positioning.
Measuring Inside Diameters with Internal Jaws
Insert the inner jaws into the opening and expand them slowly until both tips contact the inner walls at the widest point.
Rock the tool gently from side to side to locate the true maximum span, then lock your hand position to keep alignment steady.
Note the beam reading first, taking the last full mark before the pointer reference line as the base value.
Add the circular gauge reading by matching the pointer to the nearest graduation, converting that fraction into the same unit format.
Verify the result by rotating the tool ninety degrees and repeating the process to confirm consistent contact.
Using the Depth Rod for Slot and Hole Measurements
Extend the depth rod until it reaches the bottom surface while the tool body rests flat on the top edge of the slot or opening.
Keep the base fully seated to prevent tilt, as even a slight angle can add noticeable error at small depths.
Read the main scale first to capture the full unit value, then add the pointer position from the round indicator to complete the result.
Repeat the process at two opposite points inside the same opening to check consistency and surface flatness.
| Task Type | Contact Point | Check Action |
|---|---|---|
| Blind hole | Bottom surface | Rotate tool and repeat |
| Narrow slot | Lowest edge | Verify base alignment |
| Counterbore | Step floor | Compare multiple spots |
Record each reading immediately after removal to avoid memory errors and unintended shifts in rod position.
Recording Results and Checking Measurement Accuracy
Write down each reading immediately after taking it, using the same unit format across all entries to prevent confusion during later review.
Repeat each size check at least twice and compare the values; a difference greater than one small scale division signals improper contact or tool misalignment.
Zero the indicator against a known reference block before a new series of checks to confirm the pointer returns to the starting mark.
Note surface conditions such as burrs, coating, or temperature, since metal expansion of just 10°C can shift results by several hundredths.
Average multiple consistent readings rather than relying on a single value, and flag any outlier that falls outside the expected tolerance range.
