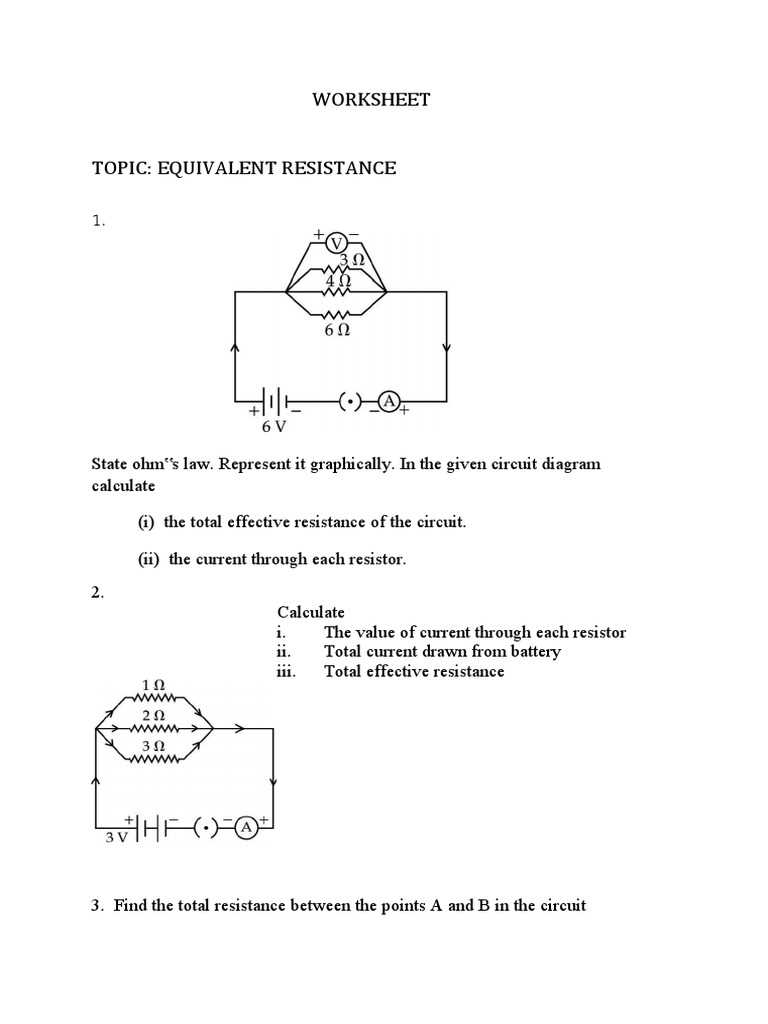

Practice Problems for Calculating Equivalent Resistance

To solve problems involving electrical components, start by determining whether the resistors are connected end-to-end or side-by-side. For components in series, the total value is simply the sum of all individual resistances. For resistors in parallel, use the formula that accounts for the reciprocal of each component’s value.

In mixed circuits, first break the problem into smaller sections. Calculate the total for parts connected in series or parallel before combining them into one equivalent value. This step-by-step approach makes complex problems more manageable.

Additionally, always pay attention to units and double-check your calculations. Small errors in converting between ohms or misidentifying the configuration can lead to significant discrepancies in your results.

Practice Problems for Calculating Total Resistance in Circuits

Start by identifying the configuration of the components in the circuit. For resistors in series, simply add the values together to get the total. For parallel resistors, use the reciprocal formula: 1/R_total = 1/R1 + 1/R2 + …

For circuits that include both series and parallel elements, break them down into smaller sections. Calculate the total for each section and then combine them. This will simplify the overall problem and make it easier to solve step by step.

When solving problems, remember to pay attention to units. If the components are in ohms, ensure that all values are consistently expressed in the same unit to avoid errors in the final calculation.

How to Calculate Total Resistance in Series Circuits

To find the total opposition in a series setup, add the individual values of each component together. Use the formula: R_total = R1 + R2 + R3 + ….

Each resistor in a series circuit contributes to the total opposition. The total value is the sum of all the individual resistances, which directly impacts how current flows through the circuit.

For instance, if there are three components with values of 3Ω, 5Ω, and 8Ω, the total value is R_total = 3 + 5 + 8 = 16Ω.

Make sure all measurements are in the same unit. If any of the values are in different units, convert them to a common unit (typically ohms) before calculating the total.

Steps for Finding Total Opposition in Parallel Circuits

To calculate the total opposition in parallel circuits, follow these steps:

1. Identify the individual values: Take note of the opposition values for each component in the parallel setup.
2. Apply the formula: Use the reciprocal formula: 1/R_total = 1/R1 + 1/R2 + 1/R3 + ….
3. Calculate the reciprocals: For each value, calculate the reciprocal (1 divided by the component’s value).
4. Sum the reciprocals: Add the reciprocals of all the components together.
5. Find the final total: After summing the reciprocals, take the reciprocal of the result to find the total value.

For example, if you have three components with values of 6Ω, 12Ω, and 18Ω, the calculation would be:

1/R_total = 1/6 + 1/12 + 1/18 = 0.1667 + 0.0833 + 0.0556 = 0.3056

Then, take the reciprocal of 0.3056 to get R_total ≈ 3.27Ω.

Ensure all components are in the same unit before performing the calculations. If needed, convert different units to a common one (such as ohms).

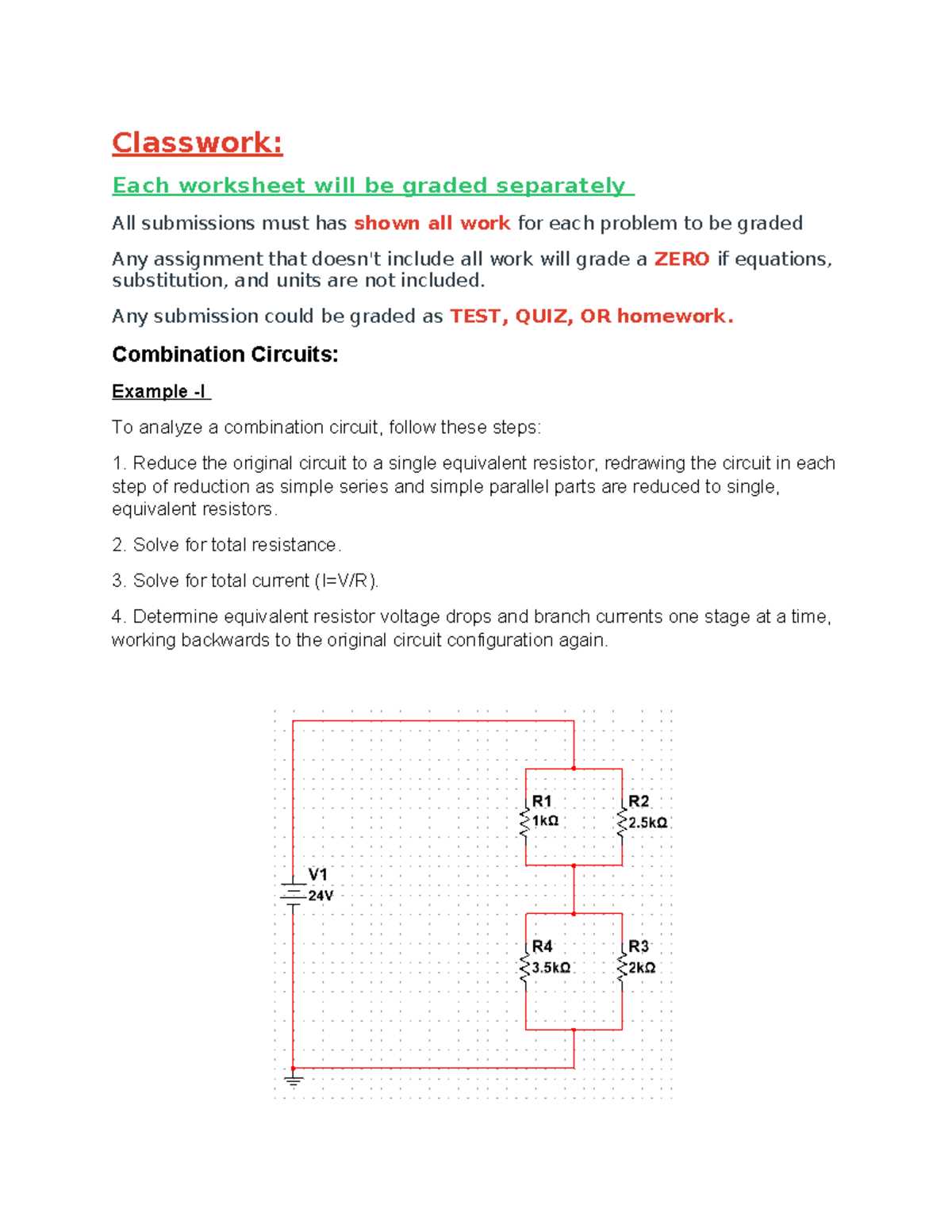

Solving Problems with Mixed Series and Parallel Resistors

When dealing with a combination of series and parallel components, the process becomes a bit more involved. Here’s how to solve these problems step by step:

1. Identify the configuration: Start by distinguishing which resistors are in series and which are in parallel. A series configuration means the components are connected end-to-end, while parallel means they are connected across the same two points.
2. Simplify the parallel parts: For the resistors in parallel, apply the reciprocal formula: 1/R_total = 1/R1 + 1/R2 + 1/R3 + …. Combine these components first before addressing the series parts.
3. Simplify the series parts: Once the parallel groups are combined, treat them as single resistors. Add the values for resistors in series using the formula: R_total = R1 + R2 + R3 + ….
4. Repeat the process if necessary: If the simplified circuit still has both series and parallel components, repeat the steps to reduce the circuit further.
5. Final result: After all simplifications, calculate the total opposition across the entire circuit.

For example, if you have two resistors in parallel (10Ω and 20Ω) in series with a 30Ω resistor, first simplify the parallel resistors:

1/R_parallel = 1/10 + 1/20 = 0.15, so R_parallel = 6.67Ω.

Then, add the series resistor: R_total = 6.67Ω + 30Ω = 36.67Ω.

This process ensures a step-by-step reduction to find the total opposition across the circuit.

Common Mistakes and Tips for Accurate Resistance Calculations

To avoid errors while calculating total opposition in circuits, follow these practical tips and be aware of common mistakes:

• Misidentifying the circuit type: Always identify whether components are connected in series or parallel before starting calculations. Misidentifying the configuration can lead to wrong results.
• Forgetting reciprocal calculations in parallel: When combining parallel components, use the reciprocal formula. Skipping this step is a frequent mistake, resulting in incorrect values. Remember: 1/R_total = 1/R1 + 1/R2 + ….
• Incorrectly adding resistors in series: In series, simply add up the values of each component. Do not use reciprocal formulas or other operations, as this can distort the result.
• Neglecting to simplify step by step: For complex circuits with both series and parallel components, simplify in stages. Don’t try to handle everything at once. First, reduce parallel sections, then address series components.
• Overlooking units: Always check that all components are in the same unit (ohms). Mixing units, like milliohms and ohms, will lead to incorrect calculations.
• Ignoring the impact of additional components: Sometimes, an additional resistor can change the overall configuration from series to parallel, or vice versa. Double-check the circuit layout before calculating.

By following these steps and paying attention to these details, you can minimize errors and perform more accurate calculations in circuit analysis.
