If you need to reference data from a separate tab for a selection in a cell, start by using a range in another sheet. This approach allows for a clean interface, making your workbook more organized and easier to navigate.
First, define the data source you wish to use in a different sheet, ensuring the range is properly selected and named. By naming the range, you create an easily accessible reference that can be linked to multiple cells in your current sheet. This prevents errors and streamlines the process of updating your data.
Once the source is set, move to the target cells where you want the selection options to appear. Link these cells directly to the named range, ensuring they dynamically update when the source data changes. This method avoids the need for redundant data entry and ensures consistency across your workbook.
How to Create a Selection Box from a Separate Sheet
Begin by selecting the range in another tab that you want to reference. Make sure to highlight all the cells that will be used for the options. For ease, name the range to avoid selecting it manually each time.
Next, go to the cell where you want to add the selection. Open the “Data” tab and click on “Data Validation”. In the “Allow” box, choose “List”. In the “Source” field, type the name of the range you previously defined, preceded by an equals sign. For example, if you named your range “ProductList”, input =ProductList.
Once confirmed, the cell will now contain a dropdown linked to the data from the other sheet. Whenever you update the options in the original range, the dropdown will automatically reflect those changes.
Step-by-Step Guide to Setting Up a Selection Box Across Sheets
1. Start by selecting the range of cells on a separate sheet that will contain your options. Ensure all data is contiguous in a single column or row. Name this range for easier reference later.

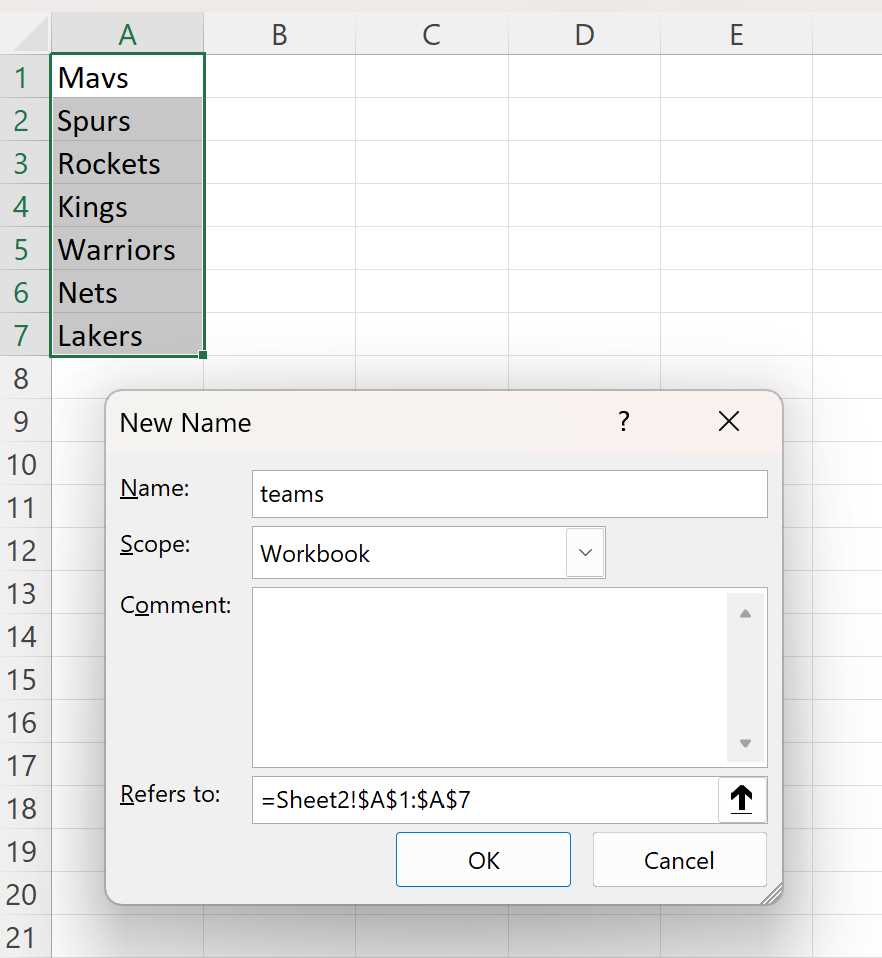

2. To name the range, highlight the cells, go to the “Formulas” tab, and click on “Define Name.” Enter a name for the range, like “OptionsList,” and click “OK.”
3. Move to the sheet where you want the selection to appear. Select the cell or range of cells where you want to create the selection. Then, navigate to the “Data” tab and click “Data Validation.”
4. In the “Data Validation” dialog, select “List” under the “Allow” section. In the “Source” field, type the name of the range you defined, preceded by an equals sign. For example, use =OptionsList.
5. Confirm by clicking “OK.” The target cells now feature a menu with options sourced from the other sheet. Any updates to the original data will automatically reflect in the selection box.
Using Named Ranges for Easier Selection Box Creation
1. Begin by selecting the range of values you want to include in your options. These values should be in a single column or row on a separate sheet.
2. To make referencing easier, create a named range for the selected cells. Highlight the range, go to the “Formulas” tab, and click on “Define Name.” Enter a name for the range, like “OptionsData,” and click “OK.”
3. Now that you have a named range, go to the sheet where the selection will be placed. Select the cells where you want the options to appear, and navigate to the “Data” tab. Click “Data Validation.”
4. In the “Data Validation” dialog box, select “List” in the “Allow” section. In the “Source” field, type the name of the defined range preceded by an equals sign. For example, use =OptionsData.
5. Press “OK,” and now your cells will feature a drop-down menu populated with the values from the named range. This method allows for easy management and updates of the data in the selection box.
| Step | Action |
|---|---|
| 1 | Select your desired values and name the range. |
| 2 | Go to “Data Validation” and select “List.” |
| 3 | Type the name of the range with an equals sign in the “Source” field. |
| 4 | Click “OK” to confirm and apply the selection box. |
Troubleshooting Common Errors When Setting Up a Selection Box
If the options aren’t appearing, check if the source range is correctly defined. Ensure that there are no extra spaces or hidden characters in the range you’re referencing.
Verify that the range you’re trying to use is not on a protected sheet. If it’s locked, it won’t be accessible for use in the data validation list. Unprotect the sheet if necessary.
In case the drop-down menu is blank, double-check that the data validation settings are correct. The source should reference the correct range, or the named range should be used without any typos.
Another common issue arises when the named range exceeds the character limit (255 characters). Keep the range name short and avoid spaces to ensure it is usable in the source field.
If your data includes blank cells, it may cause unexpected behavior. Remove any empty cells within the range or ensure the range covers only the necessary cells.
When you’re facing errors related to external links, ensure that all references in the data validation are linked properly and that no external references are broken or incorrect.
How to Update and Maintain Selection Boxes Linked to Another Sheet
To refresh the options linked to another page, modify the source range directly on the other sheet. Once updated, the changes will automatically reflect in the linked options.
For better organization, convert the source data to a table. This ensures that as new entries are added, the range expands automatically, keeping the selections up to date without manual intervention.
If your range is dynamic and includes new entries, use a named range that updates automatically. This way, when new data is added, it’s instantly included in the selections without needing to adjust the validation settings.
In the case of changes in the reference sheet, always double-check that the source reference in the data validation settings is still correct. If the range has been moved or renamed, update the link to avoid errors.
For larger data sets, consider organizing the source range into categories or groups. This helps manage updates more efficiently, and adding or removing items becomes easier to track.
If you’re linking from multiple sheets, ensure the links between them are correctly maintained. Use cell references or named ranges, and check that no sheet is accidentally deleted or moved.
