How to Create a Drop Down List in Excel from Another Worksheet

To build a selection menu using values located in a separate sheet, begin by selecting the cell where the options should appear. Then, navigate to the validation settings and choose to reference a range in another tab. This method ensures that your menu is dynamic, pulling the latest entries without manual updates.

First, highlight the cells where you want the options to appear. Open the “Data Validation” dialog, select “List,” and in the source field, enter the reference to the data in a different sheet. For example, if the data resides in column A on a sheet named “Data”, input =Data!A1:A10 in the source box. This will allow the cell to display choices from the specified range.

If you plan to use a large dataset, it’s a good idea to name the range containing the options. This makes it easier to reference and reduces the risk of errors. To name a range, simply select the cells, go to the “Formulas” tab, and click on “Define Name.” Once named, you can refer to the range by its name, like =OptionsList, making your formula cleaner and more manageable.

In some cases, you might encounter issues such as the options not displaying correctly or an error when entering the range. Double-check that the range is correctly referenced and that there are no spaces or syntax errors in the formula. If problems persist, try using absolute references (e.g., $A$1:$A$10) to avoid accidental shifts when copying the validation settings.

Creating a Selection Menu Using Data from a Different Sheet

To set up a selection menu using values from another tab, start by selecting the cell where the menu will appear. Then, access the “Data Validation” settings, and choose “List” as the validation type. In the source field, reference the range of data located in the other tab.

Here’s how to do it:

1. Select the cell where you want the options to appear.

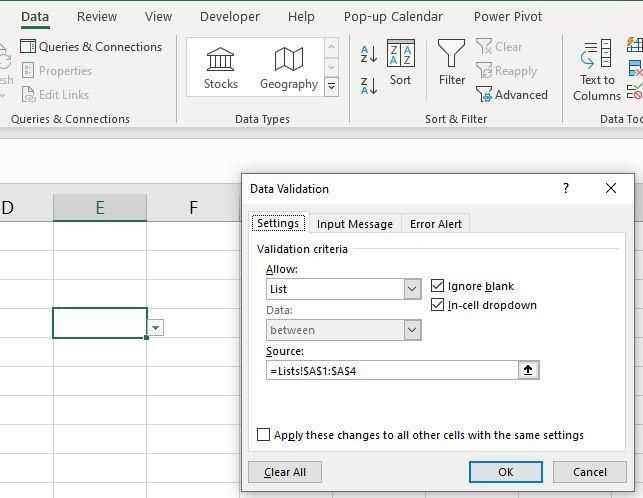

2. Go to the “Data” tab and click “Data Validation.”
3. In the validation dialog, choose “List” under the “Allow” section.
4. In the “Source” box, enter the reference to the data range in the other tab. For example: =Sheet2!A1:A10.

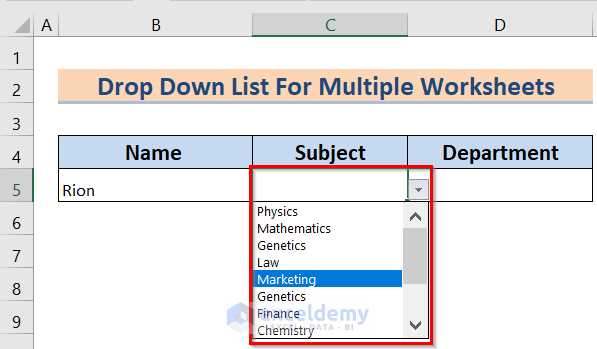

This will link the selected cell to the values in the specified range of the other tab, allowing users to choose options from there.

If the data range is large or you plan to use it repeatedly, it’s better to name the range. This simplifies referencing the range and improves readability.

1. Highlight the data range you want to use.
2. Go to the “Formulas” tab and click “Define Name.”
3. Give the range a name, like “Options,” and press OK.

After naming the range, use =Options in the “Source” box for easier reference.

If the menu isn’t working as expected, check the range references. Ensure that the range is correctly formatted and includes all necessary cells. Also, verify that no extra spaces or syntax errors are present in the source formula.

How to Set Up a Selection Menu Using Data from a Different Sheet

To create a menu in a cell that pulls its options from a range in another tab, follow these steps:

1. Click on the cell where you want the options to appear.
2. Go to the “Data” tab and select “Data Validation” in the ribbon.
3. In the “Data Validation” dialog, under the “Settings” tab, select “List” as the validation type.
4. In the “Source” box, type the reference to the data range on the other tab. For example: =Sheet2!A1:A10.

This will connect the cell to the data range in the other tab, displaying those values in a drop-down menu.

If you plan to update the source data often, naming the range can make it easier to manage. To name the range:

1. Select the range of cells with the data.
2. Go to the “Formulas” tab and click “Define Name.”
3. Give the range a meaningful name, such as “Options,” and click OK.

Now, instead of using a range reference like =Sheet2!A1:A10, you can simply enter =Options in the “Source” box, which will automatically update if the range is modified.

Steps to Name a Range for Selection Menu Reference in Another Sheet

To name a range for use in a selection menu across different sheets, follow these steps:

1. Highlight the range of cells you want to name.
2. Go to the “Formulas” tab in the ribbon and click on “Define Name.”
3. In the “New Name” dialog, enter a descriptive name, like “MenuOptions,” in the “Name” field.
4. Ensure the “Refers to” field correctly displays the range you selected, such as =Sheet2!$A$1:$A$10.
5. Click “OK” to save the name.

Now, instead of referencing the range as =Sheet2!$A$1:$A$10, you can simply use =MenuOptions in the “Source” box of the validation settings. This simplifies future updates and ensures the menu stays connected to the correct data.

Troubleshooting Common Issues with Selection Menus in Excel

If your options are not showing up or the menu is malfunctioning, check the following:

1. Incorrect Range Reference: Ensure that the range reference is correct. Double-check the sheet name and cell range. If you’re using a named range, verify the name is correctly defined and points to the right range.
2. Empty Cells in the Data Range: If there are empty cells in the range, the menu might not function properly. Remove any empty cells or ensure the range is clean of non-data entries.
3. Data Validation Errors: If you receive an error message, ensure the data validation formula is free of typos and correctly references the range or named range. Use absolute references if necessary (e.g., $A$1:$A$10).
4. Incorrect Use of Formula: If the source box contains a formula, ensure it’s typed correctly and doesn’t contain extra characters or spaces. For example, =Sheet2!A1:A10 is correct, while =Sheet2!A1 : A10 with spaces is not.
5. Cell Formatting Issues: Sometimes the cell might not display options due to formatting. Reset the formatting by clearing the formatting options in the “Home” tab under “Clear Formats.”

By following these steps, most issues with selection menus can be resolved. If problems persist, try recreating the menu from scratch and double-check the source data.
