To streamline the process of bringing external data into your spreadsheet, automate it using VBA. Start by writing a simple script to open a file and read its content. By doing so, you eliminate manual entry, saving time and reducing errors.
Begin with basic code: Write a macro that opens the target file and parses its data line by line. This method ensures that each piece of information is placed correctly without the need for manual copying and pasting. Once you’ve set up the core script, you can modify it to handle different file types and data formats as needed.
Enhance automation: Once the basic framework is set, consider adding error handling to address potential issues, like missing files or incorrect formats. Additionally, formatting the imported data to fit your preferred structure is a simple step that can be added into the script, making it adaptable for various tasks.
Automating Data Transfer into Spreadsheets Using VBA
To automate the process of loading data from a text file into a spreadsheet, start by writing a macro that opens the file and processes each line. The following VBA code can be used to achieve this:
Sub ImportData()
Dim ws As Worksheet
Dim filePath As String
Dim rowNum As Long
Dim fileNo As Integer
Dim lineData As String
Dim splitData() As String
' Set target sheet and file path
Set ws = ThisWorkbook.Sheets("Sheet1")
filePath = "C:pathtoyourfile.txt"
' Open the file
fileNo = FreeFile
Open filePath For Input As fileNo
rowNum = 1
' Read the file line by line
Do Until EOF(fileNo)
Line Input #fileNo, lineData
splitData = Split(lineData, ",") ' Assuming comma-separated values
For i = 0 To UBound(splitData)
ws.Cells(rowNum, i + 1).Value = splitData(i)
Next i
rowNum = rowNum + 1
Loop
' Close the file
Close fileNo
End Sub
Key considerations: This code assumes the data is separated by commas. You can adjust the Split function’s delimiter if the data uses another separator, like tabs or semicolons. Additionally, the code writes the data starting from the first row and column, but you can modify the target range to fit your needs.
Error Handling: Add error handling to ensure the macro can gracefully handle situations like missing files or incorrect file formats. For example, you can check if the file exists before opening it with the Dir function.
Setting Up for Automated Data Loading
Begin by enabling macros in your spreadsheet application. Go to the “Developer” tab, click “Macro Security,” and ensure macros are enabled. If the Developer tab is not visible, activate it through the application settings under “Customize Ribbon.”
Next, open the Visual Basic for Applications (VBA) editor. You can access it by pressing “Alt + F11” or by selecting “Visual Basic” from the Developer tab. In the editor, create a new module by right-clicking on “VBAProject” and selecting “Insert” > “Module.”
Prepare the environment: If you’re dealing with a specific folder for file storage, define the file path within your script. Use a string variable like:
Dim filePath As String
filePath = "C:UsersYourNameDocumentsdata.txt"Check file accessibility: Before attempting to read the file, ensure it exists by using the Dir function. This will prevent errors in case the file is moved or deleted:
If Dir(filePath) = "" Then
MsgBox "File not found"
Exit Sub
End IfOnce your setup is complete, you are ready to begin scripting the code for reading and processing data from external files into your spreadsheet.
Writing Code to Open and Read External Data Files
To read data from an external file, start by opening it with the Open statement. This allows you to access the file line by line. Use a file number to reference the file, which you get from the FreeFile function:
Dim fileNo As Integer
fileNo = FreeFile
Open "C:pathtoyourdata.txt" For Input As fileNo
Once the file is open, you can read the data using the Line Input statement. This reads a single line of text into a variable. Here’s an example:
Dim lineData As String
Line Input #fileNo, lineData
This will store the current line from the file in the lineData variable. If the file contains multiple lines, use a loop to process each line until the end of the file is reached:
Do Until EOF(fileNo)
Line Input #fileNo, lineData
' Process the line of data here
Loop
Finally, close the file after reading all the data using the Close statement:
Close fileNo
Handling Delimiters: If the data is separated by a specific character, such as commas or tabs, use the Split function to divide the line into individual pieces:
Dim splitData() As String
splitData = Split(lineData, ",") ' Adjust delimiter as needed
This will store each value from the line into an array for further processing, such as writing the data into your desired location.
Handling Data Formatting After File Loading
After transferring data, you often need to adjust the format to match the layout of your sheet. One of the most common tasks is ensuring that each value is placed in the correct column and row.
Adjust Column Width: Automatically resize columns to fit the imported data using the following code:
Columns.AutoFit
This will ensure that all data is visible, preventing cut-off text in narrow columns.
Format Date and Time: If your data includes dates or times, format the cells accordingly. Use the following code to set a column to a date format:
Range("A1:A100").NumberFormat = "mm/dd/yyyy"
Replace A1:A100 with the range of cells that contain date values. This ensures the data is recognized as a date rather than as plain text.
Remove Extra Spaces: Sometimes, extra spaces can cause issues with data analysis. Use the Trim function to clean up text values:
For Each cell In Range("A1:A100")
cell.Value = Trim(cell.Value)
Next cell
This removes leading and trailing spaces from text entries, making the data more consistent.
Handle Numerical Data: If your data contains numbers that need formatting, such as currency or percentages, use the following:
Range("B1:B100").NumberFormat = "$#,##0.00"
This code formats the selected range to display numbers as currency with two decimal places. You can modify the format depending on the desired outcome (e.g., for percentages or scientific notation).
Apply Conditional Formatting: After importing, use conditional formatting to highlight specific data points. For example, to highlight cells with values greater than 1000, you can use the following:
Range("C1:C100").FormatConditions.Add Type:=xlCellValue, Operator:=xlGreater, Formula1:="1000"
Range("C1:C100").FormatConditions(1).Interior.Color = RGB(255, 0, 0)
This will apply a red background to cells with values greater than 1000 in the specified range.
Automating the Data Transfer Process with Macros
To automate the task of loading data into a spreadsheet, you can use a macro to streamline the process. A macro is a series of pre-recorded actions that execute when triggered, saving time on repetitive tasks. Below is an example of a macro that automatically opens a file and transfers its content to a specified sheet:
Sub AutoLoadData()
Dim filePath As String
Dim ws As Worksheet
Dim fileNo As Integer
Dim lineData As String
Dim rowNum As Long
Dim splitData() As String
' Define file path and sheet
filePath = "C:pathtoyourdata.txt"
Set ws = ThisWorkbook.Sheets("Sheet1")
' Open the file
fileNo = FreeFile
Open filePath For Input As fileNo
rowNum = 1
' Read and process each line of data
Do Until EOF(fileNo)
Line Input #fileNo, lineData
splitData = Split(lineData, ",") ' Adjust delimiter as needed
For i = 0 To UBound(splitData)
ws.Cells(rowNum, i + 1).Value = splitData(i)
Next i
rowNum = rowNum + 1
Loop
' Close the file
Close fileNo
End Sub
How to Automate Trigger: Set the macro to run automatically by associating it with an event, such as opening the workbook or clicking a button. For automatic execution upon opening, use the following code in the “ThisWorkbook” module:
Private Sub Workbook_Open()
Call AutoLoadData
End Sub

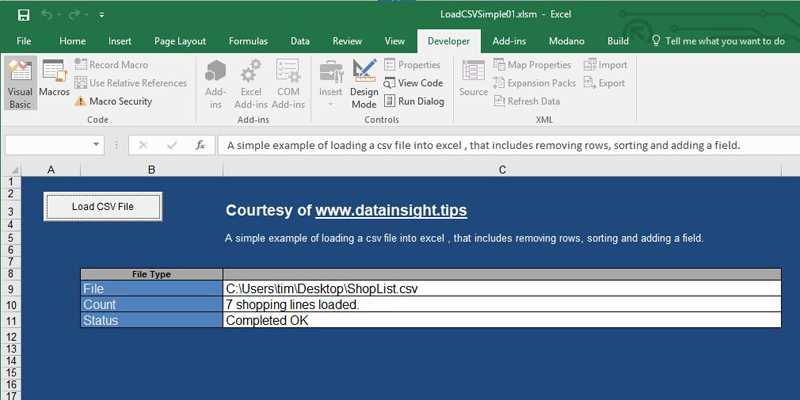

Set Up a Button for Manual Trigger: Add a button to the sheet that users can click to run the macro. To do this:
- Go to the “Developer” tab and click “Insert.”
- Choose “Button” under “Form Controls.”
- Draw the button on the sheet and assign the macro to it.
Batch Process Multiple Files: If you need to load multiple files, loop through a folder using this code:
Dim fileName As String
fileName = Dir("C:pathtofolder*.txt")
Do While fileName ""
' Call the data loading subroutine for each file
Call AutoLoadData
fileName = Dir
Loop
This approach allows you to automate the data loading process for several files, saving time and reducing the chance for human error.
