To quickly capture input from users and store it in a spreadsheet, creating a form interface is the ideal solution. This method enhances both speed and accuracy by allowing users to enter information through a more intuitive interface instead of filling out cells manually.
Designing the form involves constructing controls such as text boxes, combo boxes, or command buttons that allow users to enter or select specific values. After the form is designed, the next step is programming the event handler that will transfer the entered values to the correct rows and columns in the underlying table or range.
By mastering these steps, you can streamline workflows, reduce data-entry errors, and allow for more complex and dynamic user interaction. The power of VBA enables you to automate these processes, saving time and improving user experience. This guide will walk you through the exact process of setting up the form and coding the necessary logic to insert the values into the cells automatically.
Creating a Form to Enter Information into a Spreadsheet
Design a simple interface using text boxes and buttons to gather input. Each control should represent a specific piece of information that needs to be transferred to the grid. For example, use a text box for names, a combo box for categories, and a command button to trigger the action of storing the values.
In the event handler of the button, you need to capture the values entered in the form controls. Use variables to store these values temporarily before transferring them to the specified cells. Make sure to validate the input, ensuring that no required field is left empty and the values follow the expected format.
After collecting the user inputs, assign the values to the appropriate cells. For example, if the first name goes into cell A2, you can use a simple command to assign the value from the text box to the cell. Ensure that the row is dynamically selected based on the current available space in the sheet to avoid overwriting any existing entries.
Here’s a sample VBA code snippet to insert the collected information into the sheet:
Sub InsertData()
Dim lastRow As Long
lastRow = Cells(Rows.Count, 1).End(xlUp).Row + 1
Cells(lastRow, 1).Value = TextBox1.Value
Cells(lastRow, 2).Value = ComboBox1.Value
End Sub
This simple code will find the next available row and insert the values from the form controls into the respective columns.
Creating a Form to Collect Information in a Spreadsheet

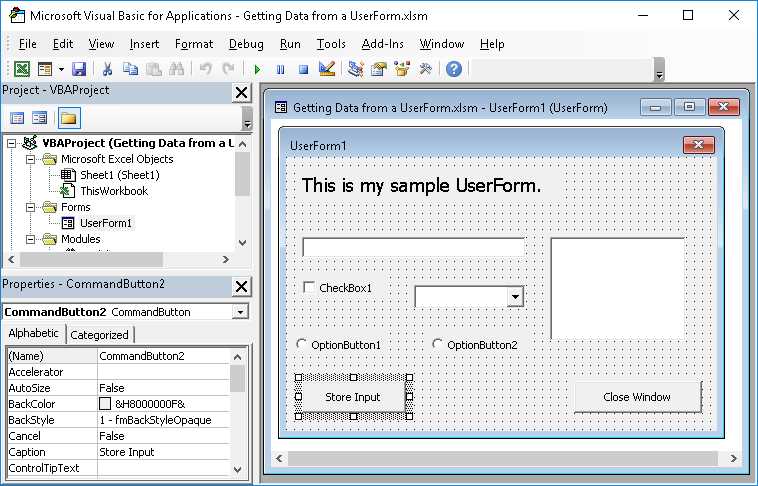

Begin by opening the Visual Basic Editor and inserting a new form. Add various controls such as text boxes, combo boxes, and labels to gather the necessary input. Labels will help clarify what each text box or combo box represents, such as “Name”, “Age”, or “Category”. Ensure that each control is properly aligned for a clean interface.
For each control, assign meaningful names, such as “txtName” for the name input box or “cmbCategory” for the category dropdown. This allows easy reference in the code later. You can also adjust the size of each control to fit the expected data, for example, making the text box longer if the input requires more characters.
Add a command button to the form, which will trigger the process of capturing and storing the input. The button should be labeled “Submit” or “Save”. After clicking this button, the input values should be processed and stored in the spreadsheet.
To ensure smooth functionality, use VBA code to retrieve the information from the form’s controls and insert it into the spreadsheet. The code should handle potential errors, such as empty fields or invalid entries, by alerting the user with a message box and preventing the form from submitting incomplete data.
Here is a simple VBA snippet for handling the button click event:
Private Sub btnSubmit_Click()
If txtName.Value = "" Or cmbCategory.Value = "" Then
MsgBox "Please fill all fields", vbExclamation
Exit Sub
End If
Dim nextRow As Long
nextRow = Cells(Rows.Count, 1).End(xlUp).Row + 1
Cells(nextRow, 1).Value = txtName.Value
Cells(nextRow, 2).Value = cmbCategory.Value
MsgBox "Information added successfully!", vbInformation
End Sub
This code checks if all fields are filled and then places the input values into the first available row, ensuring no data is overwritten. You can easily modify this structure for more complex forms.
Programming Code to Transfer Information from Form to Spreadsheet
Begin by assigning a button on the form to initiate the transfer process. The button will trigger a specific subroutine that handles the extraction of user input and stores it in the next available row of the spreadsheet.
Here’s an example of how to capture the values entered into the form’s controls and place them into the spreadsheet:
Private Sub btnSubmit_Click()
If txtName.Value = "" Or txtAge.Value = "" Then
MsgBox "Please complete all fields", vbExclamation
Exit Sub
End If
Dim lastRow As Long
lastRow = Cells(Rows.Count, 1).End(xlUp).Row + 1
Cells(lastRow, 1).Value = txtName.Value
Cells(lastRow, 2).Value = txtAge.Value
MsgBox "Information saved successfully!", vbInformation
End Sub
This subroutine starts by checking if any required fields are empty. If they are, it will display an alert, preventing the transfer. Once the fields are validated, the code determines the next available row using the xlUp method. The entered values are then transferred into the corresponding cells in the spreadsheet.
Modify the code to fit your form’s specific controls. You can add more conditions or handle other types of input based on your needs. Ensure that the logic covers all potential edge cases, such as missing entries or invalid formats, to avoid errors during submission.
Incorporate error handling to manage unexpected inputs, like incorrect data types or empty fields. This can enhance the user experience and ensure the application runs smoothly under all conditions.
