Start by practicing how shifting, stretching, and reflecting graphs can change their appearance. Begin with simple horizontal or vertical shifts to see how the graph moves across the coordinate plane.
Next, try modifying the scale of the graph. Stretching or compressing the graph vertically or horizontally alters the shape, but not the basic structure. This step is critical for visualizing how different transformations impact the graph’s overall look.
Finally, experiment with reflections across the x-axis and y-axis. Reflection will flip the graph, changing how it behaves. By practicing these steps, you’ll develop a clear understanding of how each transformation affects the graph’s coordinates and shape.
Function Transformation Guide
To begin, identify the parent graph. This is the basic form of the equation you will be working with. For example, start with simple functions like linear or quadratic equations.
Next, apply horizontal shifts by adding or subtracting values inside the equation. For example, if you have f(x – 2), the graph shifts 2 units to the right. Similarly, f(x + 3) shifts the graph 3 units to the left.
Then, adjust vertical shifts by adding or subtracting values outside the function. For instance, f(x) + 4 moves the graph 4 units upward, while f(x) – 5 moves it 5 units downward.
Now, practice scaling by multiplying the function. If the function is f(x), then 2f(x) stretches it vertically, while 0.5f(x) compresses it. Similarly, multiplying x inside the function, such as f(2x), causes horizontal compression, while f(0.5x) stretches it horizontally.
Lastly, explore reflections. Reflecting across the x-axis involves negating the entire function, like -f(x). Reflecting across the y-axis happens by negating the x inside the function, as in f(-x).
Understanding Basic Function Modifications
To begin, focus on horizontal shifts. Modifying the input variable inside the equation moves the graph left or right. For example, y = f(x – 2) shifts the graph 2 units right, while y = f(x + 3) shifts it 3 units left.
Next, consider vertical shifts. Adjusting the output of the function by adding or subtracting constants moves the graph up or down. For instance, y = f(x) + 4 moves the graph 4 units upward, while y = f(x) – 5 moves it 5 units downward.
Then, apply stretching and compressing. To stretch the graph vertically, multiply the output by a constant greater than 1, such as y = 2f(x). To compress vertically, use a constant between 0 and 1, such as y = 0.5f(x).
For horizontal scaling, multiplying the input variable by a constant greater than 1 compresses the graph horizontally, like y = f(2x). A constant between 0 and 1, such as y = f(0.5x), stretches the graph horizontally.
Finally, reflections can flip the graph over an axis. Reflecting over the x-axis is done by negating the output, like y = -f(x). To reflect over the y-axis, negate the input, as in y = f(-x).

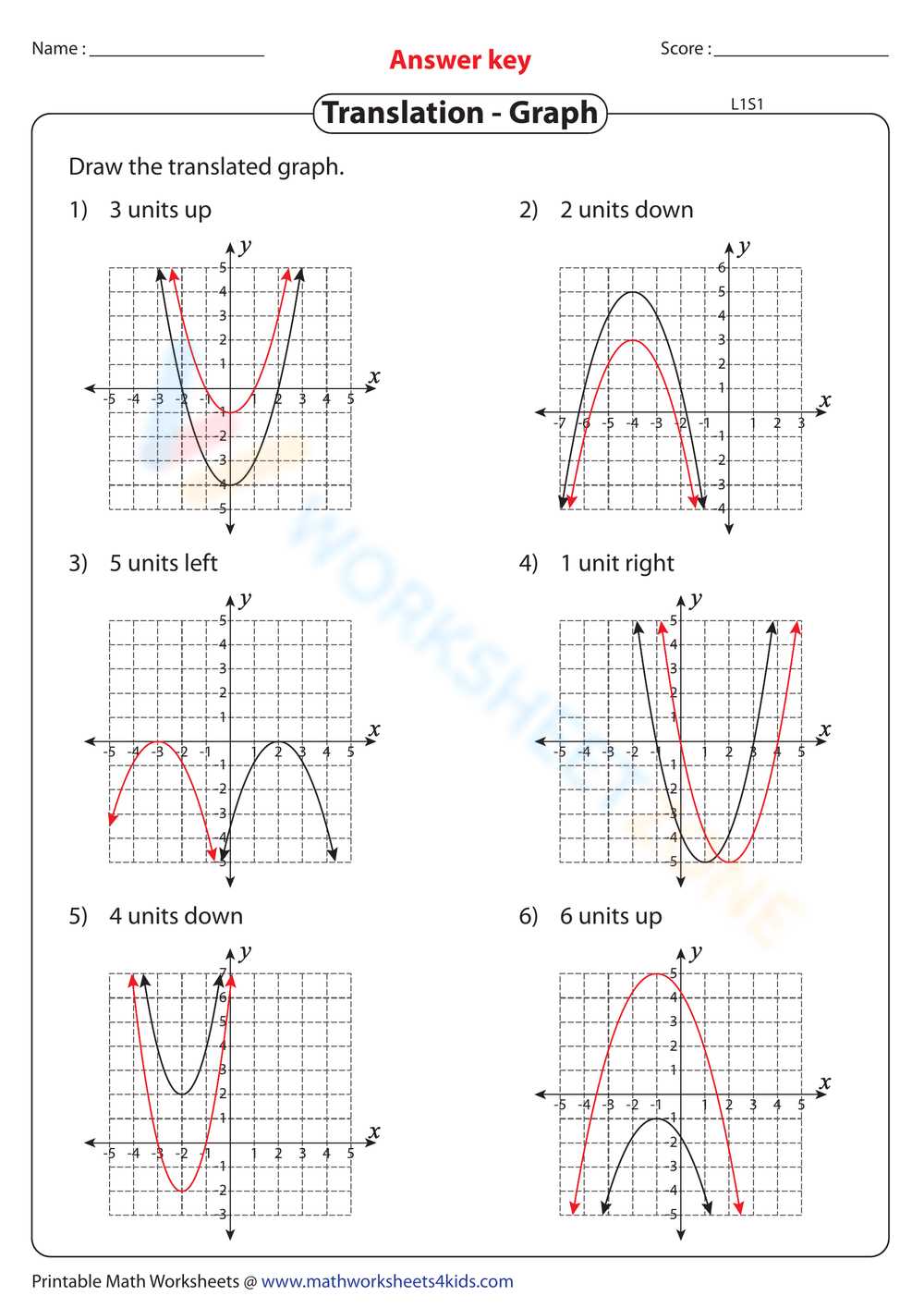

Graphing Translations and Their Impact on Functions
To graph horizontal translations, adjust the input variable. For example, in the equation y = f(x + 3), the graph shifts 3 units left. Conversely, y = f(x – 2) shifts the graph 2 units to the right.
Vertical translations are achieved by modifying the output. The equation y = f(x) + 5 shifts the graph 5 units upwards, while y = f(x) – 4 moves it 4 units downward.
These shifts do not alter the shape of the graph but change its position relative to the origin. Ensure that when plotting these translations, the function’s general structure remains intact, but its position on the coordinate plane is modified according to the constants added or subtracted.
When graphing translations, carefully observe the effect on key points such as intercepts. A vertical translation affects the y-intercept, while a horizontal shift moves the x-intercept. These changes should be noted for accurate graph interpretation.
To visualize multiple translations, apply shifts sequentially. For example, combining a horizontal shift to the left and a vertical shift upwards results in a graph moved diagonally. Plot each translation step-by-step to maintain accuracy.
Stretching and Shrinking Functions Explained
To stretch or shrink a graph vertically, multiply the output of the function by a constant. For example, y = 3f(x) stretches the graph vertically by a factor of 3. Similarly, y = 0.5f(x) shrinks the graph vertically by a factor of 2.
Horizontal stretching or shrinking involves manipulating the input. The equation y = f(2x) shrinks the graph horizontally by a factor of 2, while y = f(0.5x) stretches the graph horizontally by a factor of 2.
When applying vertical stretches or shrinks, focus on the y-values. Larger values (greater than 1) will stretch the graph away from the x-axis, while smaller values (between 0 and 1) will shrink the graph towards the x-axis.
For horizontal stretches and shrinks, observe that smaller numbers (less than 1) will stretch the graph, while larger numbers (greater than 1) will shrink the graph. These changes affect the x-values and how quickly the graph reaches its points.
To accurately represent stretching or shrinking, always ensure that the changes in scale do not distort the general shape of the graph but only modify its size. Practice plotting these changes to visualize their effects clearly.
Reflecting Functions Across Axes in Practice
To reflect a graph across the x-axis, replace the function with its negative. For example, y = -f(x) will invert the graph over the x-axis, flipping all positive y-values to negative and vice versa.
For reflection across the y-axis, replace the input variable with its opposite. The equation y = f(-x) mirrors the graph over the y-axis, flipping it left to right. This type of reflection affects the x-values while leaving the y-values unchanged.
In practical terms, start with identifying key points on the graph. Reflecting across the x-axis reverses the direction of points along the vertical axis, while reflecting across the y-axis changes the horizontal direction of points.
When working with more complex graphs, applying these reflections may alter the overall behavior of the function. Ensure to check how both positive and negative values of x and y are transformed when applying these operations.
Practice these reflections by sketching simple functions like y = x^2 or y = sin(x) and observing the changes when reflections are applied. This helps in understanding how reflections impact the symmetry and shape of the graph.
Combining Multiple Transformations in One Problem
To combine several operations on a graph, apply each one step by step. Start by adjusting the graph using the first operation, then proceed to the second operation based on the new shape. For example, if you need to shift the graph up by 3 units and then stretch it vertically by a factor of 2, perform the vertical shift first, followed by the stretch.
When combining horizontal and vertical shifts, keep track of the order. A horizontal shift occurs by modifying the input variable, such as f(x-3), and a vertical shift involves adding or subtracting from the output variable, like f(x) + 5. Make sure to adjust these operations properly, as the order can affect the outcome.
For stretching and compressing the graph, first identify whether the stretch is horizontal or vertical. Vertical stretches affect the output, while horizontal ones affect the input. Applying both at the same time requires attention to which axis is being altered.
After each transformation, verify the key points and the overall shape. Combining transformations can sometimes result in unexpected shifts in the graph’s appearance, so check how specific points are affected by each operation.
| Transformation | Effect | Example |
|---|---|---|
| Vertical Shift | Moves the graph up or down | f(x) + 3 shifts up by 3 units |
| Horizontal Shift | Moves the graph left or right | f(x-2) shifts right by 2 units |
| Vertical Stretch | Stretches the graph vertically | 2*f(x) stretches vertically by a factor of 2 |
| Horizontal Stretch | Stretches the graph horizontally | f(2x) compresses horizontally by a factor of 2 |
