Begin by familiarizing yourself with the general shape and properties of graphs that show rapid growth or decay. These graphs typically curve upwards or downwards steeply, depending on the base of the expression. The key is to recognize the effect of different constants and how they influence the direction and steepness of the curve.
Next, practice plotting basic equations like y = a^x and explore variations where a is greater than 1 or between 0 and 1. This simple adjustment can completely alter the behavior of the graph. Note how the y-values change rapidly as the x-values increase or decrease.
To strengthen your understanding, work through several problems that require plotting multiple curves on the same axis. Pay attention to the asymptotic behavior and the shifting of graphs based on transformations such as vertical shifts or scaling. Use grid lines to ensure precision and reinforce patterns you observe.
Graphing Exponential Equations: Key Steps
Begin by identifying the base and exponent in the equation. For instance, with the equation y = 2^x, the base is 2, which indicates growth. For decay, a base between 0 and 1, such as y = (1/2)^x, is used. The behavior of the graph is determined by this base value.
Next, create a table of values by substituting different x-values into the equation. Start with simple integers like -2, -1, 0, 1, and 2 to see how the y-values change. Plot these points on a coordinate grid to visualize the curve.
Pay attention to the asymptote, which is the line the graph approaches but never crosses. For most basic equations, this is the x-axis. Note how the graph behaves at extreme values of x: for positive x, the graph increases rapidly for growth functions or decreases for decay functions.
Test transformations by adding constants to the equation, such as shifting the graph vertically with y = 2^x + 3 or horizontally with y = 2^(x – 1). These adjustments affect the graph’s position but not its general shape.
Understanding the Basics of Exponential Equations
An exponential equation has the form y = a * b^x, where a is a constant, b is the base, and x is the variable. The base b dictates whether the equation represents growth or decay. When b is greater than 1, the graph shows growth, and when b is between 0 and 1, it shows decay.
The y-intercept is crucial in determining the starting point of the graph. For any equation of the form y = a * b^x, the value of y when x = 0 is a, because b^0 = 1.
The rate of change depends on the base value b. Larger values of b result in faster growth, while smaller values cause slower growth or decay. Understanding the behavior of the graph at extreme values of x helps in predicting how the equation behaves over time.
Transformations, such as adding or subtracting constants, can shift the graph vertically or horizontally. For example, y = a * b^(x – h) + k shifts the graph horizontally by h and vertically by k.
Step-by-Step Guide to Plotting Exponential Equations
1. Identify the equation: Begin by recognizing the format of the equation, usually y = a * b^x. Identify the base b and the coefficient a.
2. Find the y-intercept: Set x = 0 to find the value of y. This gives you the starting point of the graph. For example, if the equation is y = 2 * 3^x, substitute x = 0 to get y = 2.
3. Choose several values for x: Pick a range of x values (both positive and negative) and calculate the corresponding y values. This helps you determine the shape of the graph.
4. Plot the points: Using the x and y values you calculated, plot the points on a coordinate plane. For example, if x = -1, 0, 1 and y = 0.67, 2, 6, plot these points on the graph.
5. Draw the curve: Connect the points smoothly. The curve should exhibit either growth or decay depending on the base value. If b > 1, the graph grows, and if 0 , it decays.
6. Check the asymptote: The graph will approach but never touch the horizontal axis. This is the asymptote, which occurs at y = 0 for standard equations.
7. Verify the graph: Ensure the graph is smooth and reflects the correct behavior, either increasing or decreasing, based on the base b and the calculated points.
Common Mistakes When Plotting Exponential Equations
1. Incorrectly identifying the base: Make sure to recognize whether the base b is greater than 1 or between 0 and 1, as this determines whether the graph will grow or decay.
2. Forgetting the horizontal asymptote: Many miss the horizontal line y = 0, which is the asymptote. The curve should approach but never touch this line.
3. Misplacing the y-intercept: When x = 0, make sure to substitute correctly to find the correct y-value. The y-intercept is a key reference point on the graph.
4. Not choosing a wide enough range for x: Select a broad range of x values (positive and negative) to get a clearer picture of the graph’s shape. A narrow range might misrepresent the function.
5. Drawing a straight line: Remember, the graph should always be curved, not straight. For growth, the curve should rise steeply; for decay, it should fall gradually.
6. Ignoring transformations: If the equation involves shifts or scaling, account for horizontal or vertical translations and changes in the amplitude. These can drastically affect the graph’s appearance.
7. Incorrectly scaling the axes: Always ensure the scale on both axes is consistent and appropriate for the range of values you’re plotting. Poor scaling can make the graph misleading or hard to interpret.
Practical Examples and Exercises for Practice

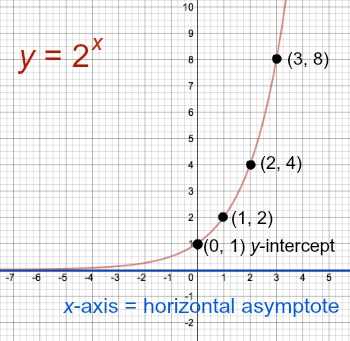

1. Plot the function y = 2^x: Start by calculating values for x = -2, -1, 0, 1, 2, then plot the points on a coordinate plane. Notice how the graph rises steeply as x increases.
2. Plot the function y = (1/2)^x: Try x = -2, -1, 0, 1, 2 again and observe how the graph decays as x increases. This will help understand the difference between growth and decay graphs.
3. Solve and plot y = 3^x – 1: This graph involves a vertical shift. Plot points for x = -2, -1, 0, 1, 2 and observe how the graph shifts down by 1 unit.
4. Transform y = 2^x by stretching it vertically: Try plotting y = 3 * 2^x and compare it to the previous graph. The factor of 3 will make the graph grow more quickly.
5. Solve for y = 2^(x + 1): Here, the graph is shifted left by 1 unit. Plot points for x = -2, -1, 0, 1, 2 and see how this affects the graph’s location on the plane.
6. Experiment with a real-world scenario: Consider population growth modeled by y = 100 * 2^x, where x represents years. Plot the graph for x = 0, 1, 2, 3, 4, 5 and analyze how the population grows exponentially over time.
