To accurately solve problems involving connected electrical components, it’s crucial to understand the behavior of circuits where components share multiple pathways for current. These types of setups differ from series circuits, as they provide multiple paths for the current to flow, which impacts the overall resistance and current distribution. Knowing how to calculate the total resistance, current, and voltage across each branch is key.
Start by reviewing the formula for calculating total resistance in such systems. The reciprocal method for finding total resistance in this type of arrangement is straightforward but requires practice. For example, the total resistance (Rtotal) can be found using the formula 1/Rtotal = 1/R1 + 1/R2 + 1/R3… for each resistor connected in this manner.
Additionally, understanding how current is divided between branches can clarify the relationship between voltage, current, and resistance. In a setup like this, the total current entering the system splits according to the resistance in each pathway, with less current flowing through branches with higher resistance.
Finally, practice problems are the most effective way to solidify this understanding. Working through a variety of problems where you calculate the total resistance, current distribution, and individual voltages will help make these concepts more intuitive and easier to apply in real-world scenarios.

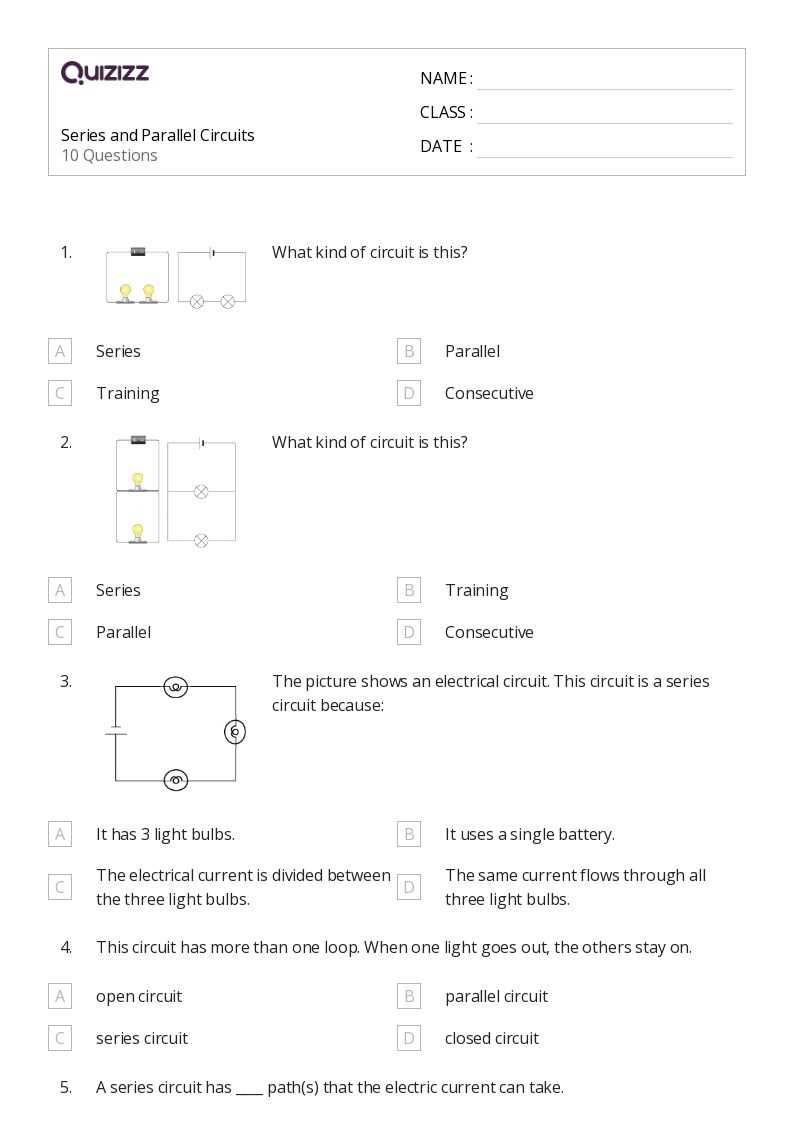

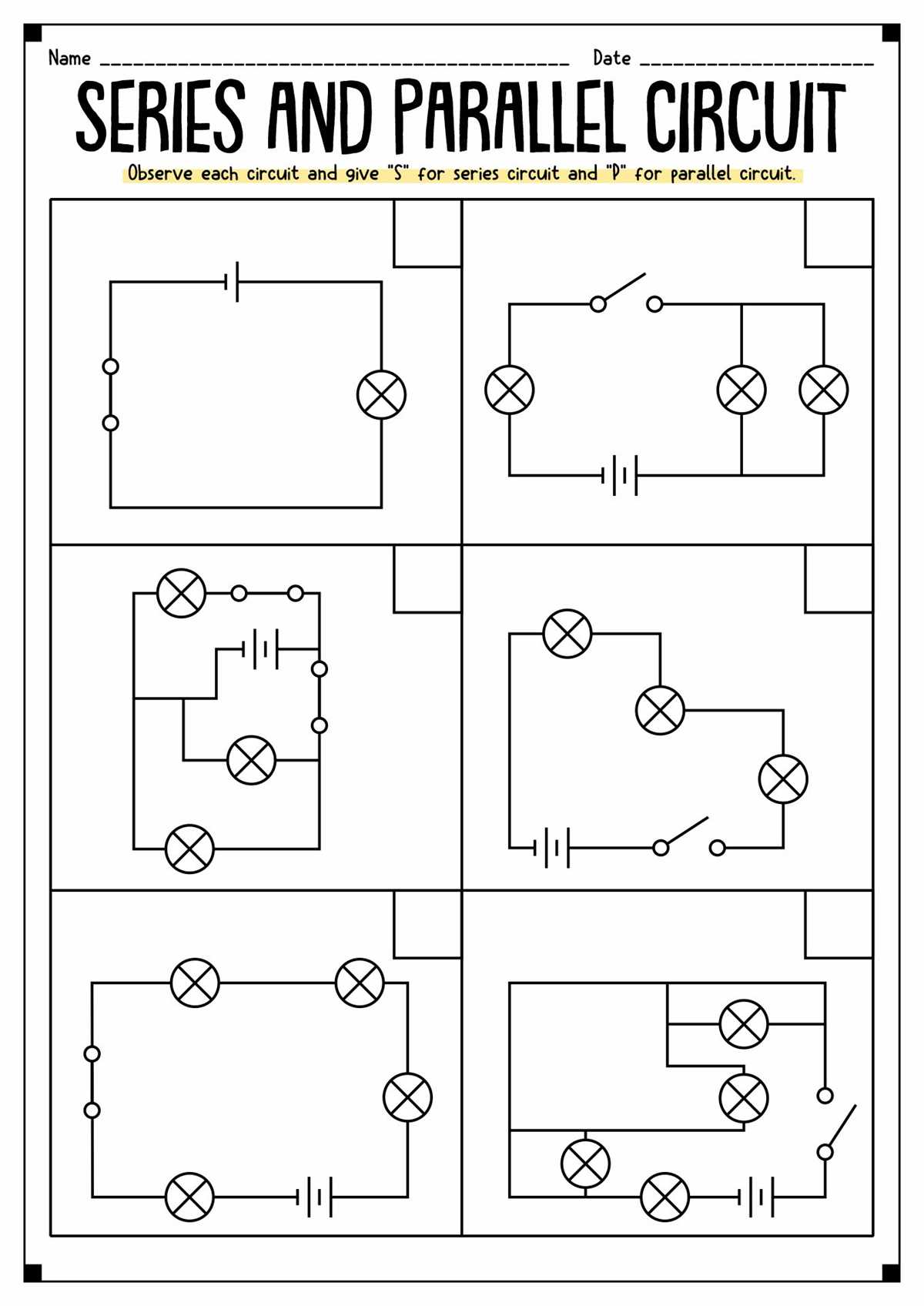

Parallel Circuit Worksheet Plan
Begin with basic exercises where students are required to calculate total resistance in a setup where multiple paths are available for current flow. Provide them with simple examples containing two or three resistors connected in this way. This will help reinforce the concept of using reciprocal values to determine overall resistance.
Next, introduce problems that require calculating the total current flowing into the system. Include varying values of voltage across the system to allow students to practice using Ohm’s Law (V = IR). Make sure students can determine how the current is distributed across each path depending on the resistance of individual branches.
Afterward, present questions where students must calculate the voltage across each branch in the setup. This exercise should focus on understanding that voltage remains constant across each branch in a system with multiple paths, and students should practice applying this principle to different resistor values.
For more challenging tasks, introduce complex systems involving more than three branches. Incorporate mixed resistor values in each branch and include both series and parallel elements in the same problem. This will help students hone their problem-solving abilities and deepen their understanding of how current and resistance interact in various types of electrical networks.
Lastly, encourage students to review their answers using real-world examples. Illustrating the practical applications of these calculations in devices such as home appliances, lighting systems, and electronic gadgets will strengthen their understanding and help them apply the knowledge to everyday situations.
Understanding the Basics of Parallel Circuits
In setups where components are connected with multiple paths, the overall current divides across each branch. The key point here is that each component gets the same voltage, while the current varies depending on the resistance of each branch. Begin by ensuring students grasp that the total resistance in such systems is always less than the smallest individual resistance in the circuit.
Students should practice calculating the total resistance using the formula: 1/R_total = 1/R_1 + 1/R_2 + … + 1/R_n. Introduce different resistor values and walk them through the process of applying this reciprocal equation. Encourage them to visualize the flow of electricity in multiple branches to see how the total resistance decreases as more branches are added.
Next, focus on how the current splits among the branches. Remind students that current in each branch is inversely proportional to the resistance in that branch. Higher resistance will lead to less current flowing through that branch. Use specific examples with varying resistor values in each path to demonstrate this concept clearly.
Lastly, explain the relationship between the voltage and current in a system with multiple paths. The voltage remains the same across all branches, so students can directly compare how varying resistances affect current flow. Encourage them to solve problems where they apply Ohm’s Law (V = IR) to calculate current in different branches of the system.
How to Calculate Total Resistance in a Parallel Circuit
To calculate the total resistance in a setup where multiple components are connected in separate paths, use the reciprocal method. The formula to apply is:
| Formula | Explanation |
|---|---|
| 1/R_total = 1/R_1 + 1/R_2 + … + 1/R_n | This equation sums the reciprocals of each resistance value. The result is the reciprocal of the total resistance. |
For example, if you have three resistors with values R1 = 4Ω, R2 = 6Ω, and R3 = 12Ω, the calculation would look like this:
| Calculation | Result |
|---|---|
| 1/R_total = 1/4 + 1/6 + 1/12 | 1/R_total = 0.25 + 0.167 + 0.083 = 0.5 |
| R_total = 1/0.5 | R_total = 2Ω |
In this example, the total resistance is 2Ω. Remember that the total resistance in such setups will always be lower than the lowest individual resistance. Practice this method with varying resistance values to build proficiency in calculating total resistance.
Steps to Solve Current Distribution in Parallel Circuits
To determine how current is divided among multiple paths in a setup with various resistive elements, follow these steps:
- Step 1: Calculate the total resistance using the reciprocal formula for the individual resistances in each path.
- Step 2: Apply Ohm’s Law (V = IR) to find the total current supplied by the power source. Use the total resistance and the supply voltage.
- Step 3: Determine the current in each path using the formula I = V / R, where V is the supply voltage, and R is the resistance in each specific path.
- Step 4: For each path, calculate the current by substituting the known values of voltage and individual resistance. The current is inversely proportional to the resistance: lower resistance paths will have more current.
- Step 5: Verify that the sum of all individual currents in each branch equals the total current supplied by the source.
For instance, if the total voltage is 12V and the resistances are 3Ω, 6Ω, and 9Ω in three separate paths, you would calculate the current in each as follows:
| Path | Resistance (R) | Current (I) |
|---|---|---|
| Path 1 | 3Ω | I = 12V / 3Ω = 4A |
| Path 2 | 6Ω | I = 12V / 6Ω = 2A |
| Path 3 | 9Ω | I = 12V / 9Ω = 1.33A |
The total current is the sum of individual currents: 4A + 2A + 1.33A = 7.33A.
Common Mistakes When Working with Parallel Circuits
One common error is incorrectly calculating the total resistance. In a setup with multiple paths, the total resistance decreases as more branches are added, but it is often mistakenly treated as the sum of individual resistances. To find the correct total resistance, use the reciprocal formula: 1/R_total = 1/R1 + 1/R2 + …
Another frequent mistake involves neglecting the individual current in each path. Many assume that the current is the same through all branches. In reality, the current divides in proportion to the resistance of each path. Lower resistance paths carry more current.
Not properly applying Ohm’s Law is also a mistake. The voltage across each branch in a parallel setup remains the same as the supply voltage, but this is often misunderstood. Using the incorrect voltage when calculating current leads to inaccurate results.
Lastly, failing to check the consistency of results can lead to mistakes. After calculating the current for each path, always verify that the sum of all individual currents equals the total current supplied by the power source.
Practical Examples for Parallel Circuit Problems
In a scenario where three light bulbs are connected to a power supply, each with different resistances, the total current drawn can be calculated by determining the current through each bulb separately. The total current is the sum of the individual currents.
For instance, if one bulb has a resistance of 5 ohms, the second one 10 ohms, and the third one 15 ohms, calculate the current for each by using Ohm’s Law: I = V/R. Then, use the total current formula to find the overall current supplied by the power source.
Another example involves a situation with a combination of resistors connected in different branches. Given resistors of 4, 8, and 12 ohms in separate paths, the total resistance is found by using the reciprocal formula: 1/R_total = 1/4 + 1/8 + 1/12. Once the total resistance is determined, the total current can be calculated using Ohm’s Law.
In a practical home wiring example, you may have several devices connected to the same voltage supply. To avoid overload, calculate the total current consumption by applying Ohm’s Law to each device and summing the results. This ensures that the wiring can handle the total load.
For more complex setups, involving mixed resistances and power supplies, breaking down the problem into smaller sections–each path treated separately–helps solve the system step by step, ensuring accurate results.
