To master the study of wave dynamics, focus on the main features that define them: amplitude, frequency, wavelength, and speed. Recognizing these properties in practice helps you link theory with real-world examples. Begin by isolating each element and applying formulas directly to problems.
Amplitude represents the maximum displacement from equilibrium. To calculate it, measure the highest point the disturbance reaches from the resting position. It plays a key role in determining the energy carried by the disturbance.
Wavelength is the distance between two consecutive points in phase, such as crest to crest or trough to trough. Measuring this helps understand the spread of energy across a medium. The greater the wavelength, the less energy each wave carries.
Next, calculate frequency, the number of complete oscillations per second. This directly affects the wave’s energy. Higher frequency results in more energy transferred through the medium.
Lastly, to solve for the wave speed, use the formula v = f × λ, where v is the velocity, f is the frequency, and λ is the wavelength. Understanding this relationship is vital for practical applications, such as sound or light behavior.
Understanding the Components of a Wave
To analyze the structure of a disturbance traveling through a medium, first identify the key components. These elements define how energy is transferred and interact within the system.
- Crest: The highest point of the disturbance. It represents maximum upward displacement from the resting position.
- Trough: The lowest point, where the displacement is at its maximum in the opposite direction.
- Rest Position: The baseline or equilibrium state where there is no disturbance, representing the medium’s natural state.
Next, measure the wavelength, the distance between two consecutive crests or troughs. It is a critical factor in understanding the spatial spread of energy. The longer the wavelength, the less frequent the disturbance over a fixed period.
The amplitude is another key characteristic, indicating the maximum displacement from the rest position. This determines the wave’s intensity or energy, with a larger amplitude carrying more energy.
To calculate frequency, count the number of complete oscillations within a specific time frame. Higher frequency means more cycles per second, often resulting in a higher energy transfer through the medium.
Lastly, apply the formula for speed, which relates all components: speed = frequency × wavelength. Understanding how these factors combine allows for a deeper insight into the wave’s behavior in different contexts.

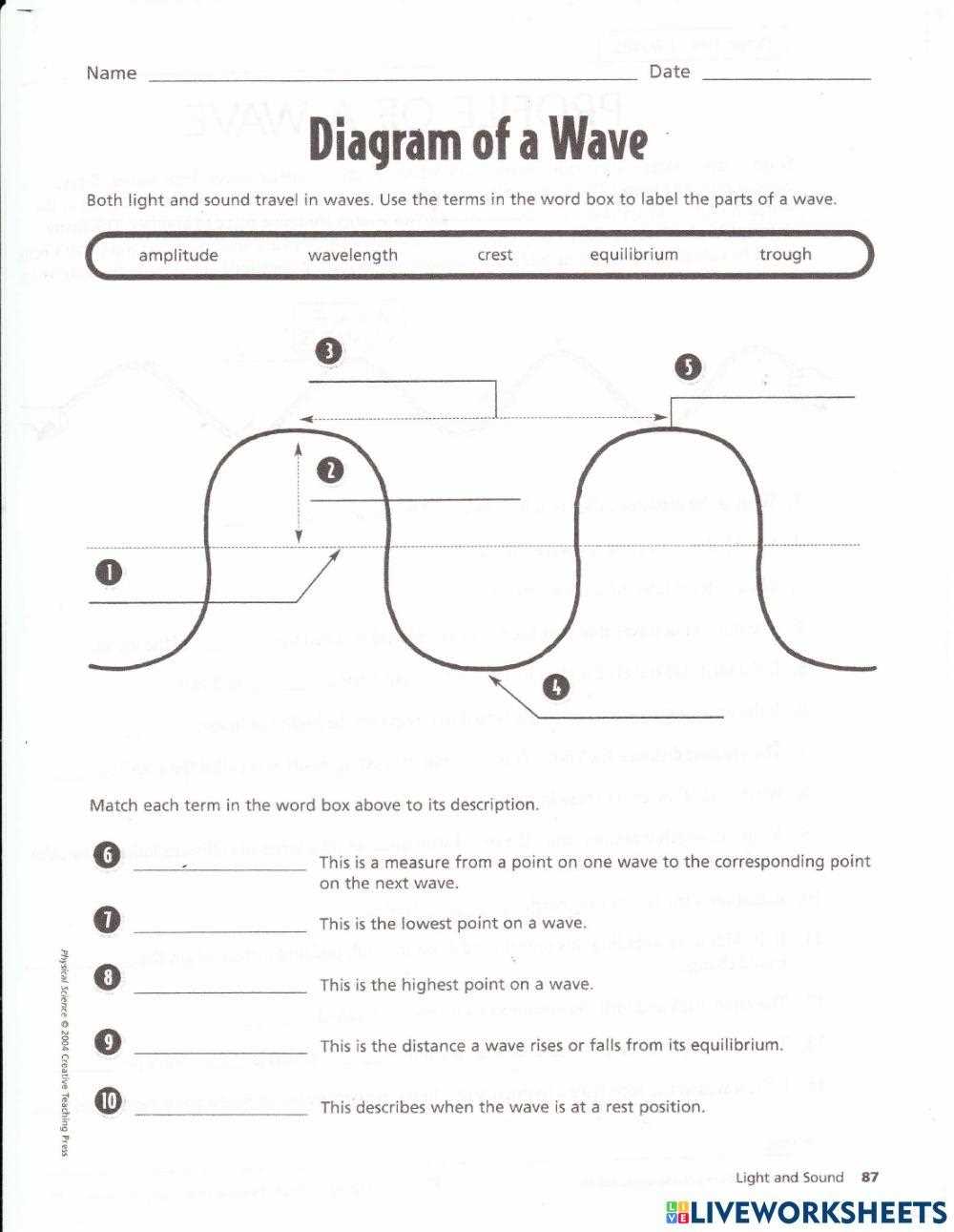

Identifying Key Components of a Wave in the Worksheet
Begin by locating the crest and trough on the diagram. The crest is the highest point, while the trough represents the lowest point. These two features define the overall shape of the disturbance.
Next, measure the wavelength. This is the distance between two consecutive crests or troughs. Use a ruler or grid lines on the sheet to calculate the distance between these points accurately.
To determine the amplitude, find the vertical distance between the rest position and the crest (or trough). The larger this measurement, the greater the energy carried by the disturbance.
Once these elements are identified, calculate the frequency by counting the number of full oscillations within a specific time frame. This will help you understand how many cycles pass in a given duration.
Lastly, apply the speed formula: speed = frequency × wavelength. This calculation gives you the velocity of the disturbance as it moves through the medium.
How to Calculate Amplitude and Wavelength Using the Worksheet
To find the amplitude, first locate the rest position of the medium. Measure the vertical distance from this position to the highest point (crest) or the lowest point (trough). This distance is the amplitude. A larger amplitude indicates a greater displacement, meaning more energy is carried by the disturbance.
Next, for calculating the wavelength, measure the horizontal distance between two consecutive crests or troughs. If the diagram shows multiple oscillations, ensure to select two points in the same phase (e.g., two crests or two troughs) for accuracy. The distance between them is the wavelength.
Use a ruler or grid lines on the diagram to measure these distances with precision. After measuring, record both the amplitude and wavelength for further analysis or calculations involving speed or frequency.
Understanding Frequency and Period Through Practical Exercises
To determine the frequency, count the number of complete oscillations within a specific time frame. If the exercise provides a time interval, divide the total number of cycles by the time to get the frequency. For example, if 20 cycles occur in 4 seconds, the frequency is 5 cycles per second.
Next, calculate the period, which is the time taken for one full cycle. To find this, simply take the inverse of the frequency. Using the previous example, with a frequency of 5 cycles per second, the period is 1/5 = 0.2 seconds.
Practical exercises often involve measuring the time for multiple cycles and then dividing by the number of cycles to find the period. This method helps reinforce the relationship between the period and frequency.
Once you’ve practiced these calculations, apply them to various types of disturbances to gain a deeper understanding of how frequency and period are related in different contexts.
