Exercises for Proving the Pythagorean Theorem with Solutions

To master the relationship between the sides of a right-angled triangle, it is important to work through examples that guide you through the proof process step-by-step. One of the most effective ways to understand this concept is by breaking down problems that involve the sum of squares of the legs equaling the square of the hypotenuse.

Start by solving geometric problems that visually demonstrate the theory. Drawing diagrams and manipulating shapes will help in grasping the abstract idea behind these mathematical relationships. Begin with simple scenarios and progress to more complex configurations as your understanding deepens.

Be mindful of common errors such as incorrect placement of the right angle or miscalculations of square values. These mistakes can hinder your progress, so it is crucial to double-check each step as you move through the exercises. By building strong foundational knowledge through practice, you will gain confidence in applying these concepts in various mathematical contexts.

Exercises for Understanding Right-Angle Triangle Relationships

To gain a solid understanding of the relationship between the sides of a right-angle triangle, start by solving basic problems where you identify the squares of the legs and compare them to the square of the longest side. This process helps develop a deeper understanding of how these measurements are connected geometrically.

Begin with problems that use small, simple numbers to calculate the length of one side when given the other two. For example, if the two shorter sides measure 3 and 4 units, you can calculate the length of the hypotenuse by squaring each leg, adding the results, and taking the square root of the sum.

As you progress, challenge yourself with more complex figures and larger numbers, which will require you to apply these relationships in varied scenarios. You can also explore real-world applications, such as calculating the distance between two points on a coordinate plane or working through problems that require geometric proof methods.

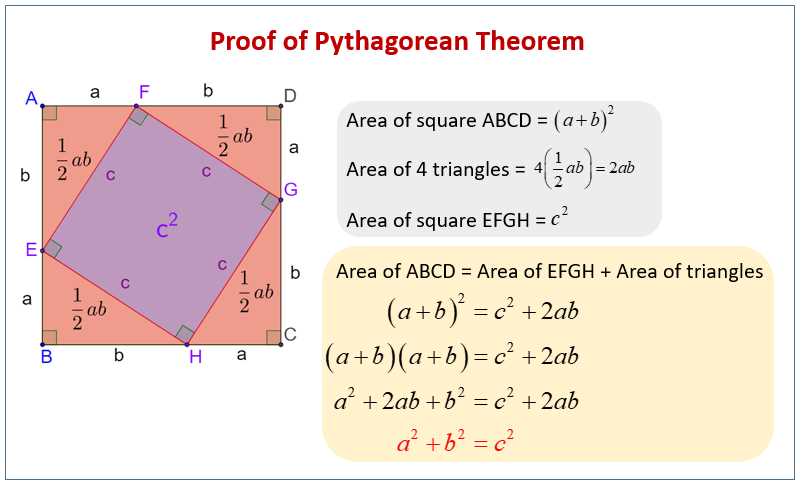

Step-by-Step Guide to Proofs Using Geometric Shapes

To prove the relationship between the sides of a right-angle triangle, follow these key steps using geometric shapes:

1. Draw the Right-Angle Triangle: Begin by drawing a triangle with a right angle. Label the sides as a, b, and the hypotenuse as c.
2. Create a Square: Construct a square around the triangle with each side equal to the hypotenuse, c. This square will have an area of c².
3. Divide the Square: Inside this square, place four copies of the original right-angle triangle. These triangles should be positioned so that their hypotenuses form the perimeter of the square, and their legs a and b fill the interior.
4. Calculate the Area of the Large Square: The total area of the large square is c², which can also be expressed as the area of the four triangles plus the area of the smaller square in the middle.
5. Calculate the Area of the Four Triangles: Each triangle has an area of 1/2 * a * b, so the total area of the four triangles is 2ab.
6. Find the Area of the Smaller Square: The area of the smaller square, located in the center, is a² + b², as it is formed by the legs of the triangles.
7. Set Up the Equation: Equate the area of the large square to the sum of the areas of the four triangles and the smaller square: c² = 2ab + (a² + b²).
8. Simplify: After simplifying, you will arrive at the equation a² + b² = c², which demonstrates the relationship between the sides of the right-angle triangle.

This geometric approach provides a visual and logical method for demonstrating how the squares of the legs of a right-angle triangle add up to the square of the hypotenuse.

Common Mistakes and How to Avoid Them in Theorem Proofs

One frequent mistake is incorrectly applying the formula for the area of a triangle. Make sure to use the correct formula, 1/2 * base * height, when calculating the area of individual triangles in your diagram.

Another common issue is forgetting to account for all components of the geometric figure. For example, when constructing squares or calculating areas, double-check that every part of the figure is included in your calculations. The smaller square in the center of the diagram must be considered alongside the triangles.

A common error is mislabeling the sides of the triangle. Clearly label the legs as a and b, and the hypotenuse as c, ensuring consistency throughout the proof. Confusing these sides leads to incorrect calculations.

Some make the mistake of overlooking simplifications in their final equation. After rearranging terms, carefully simplify the equation to its simplest form, such as a² + b² = c². Avoid skipping steps or miscalculating during this phase.

Finally, don’t forget to verify your work. Always double-check each step, especially the algebraic manipulations and the geometry involved in creating the squares and triangles. Small errors can compound, leading to incorrect conclusions.
