Solve problems by tracing the flow of charge through each connection before writing any numbers. Mark junctions, note shared paths, and identify single routes to avoid mixing formulas.
Use given values for voltage supply, component resistance, and load placement to calculate current step by step. Apply Ohm’s law consistently and keep units visible to catch mistakes early.
Check results by verifying physical rules: total resistance rises when components are chained and drops when multiple paths split the flow. Mismatch signals an error in setup or arithmetic.

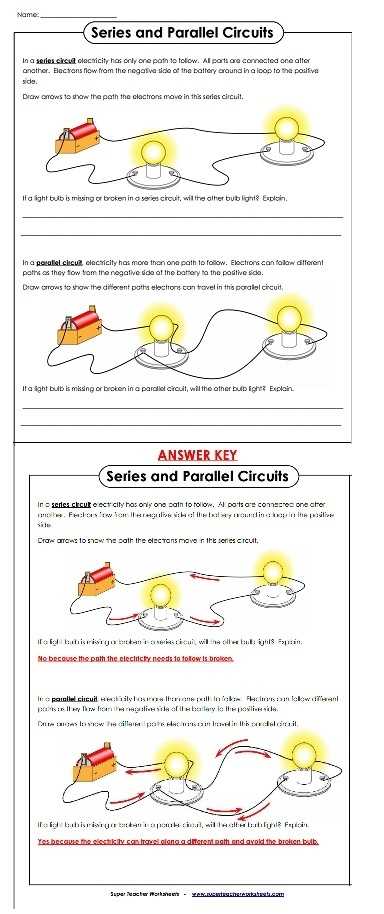

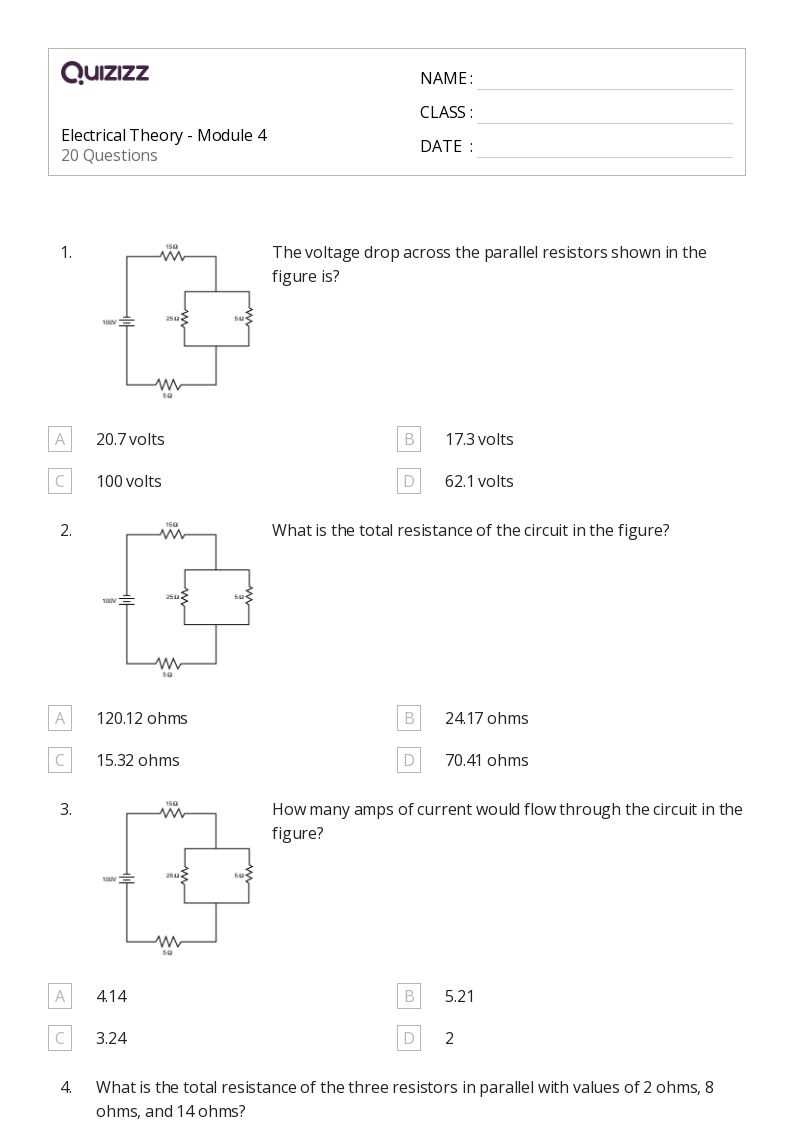

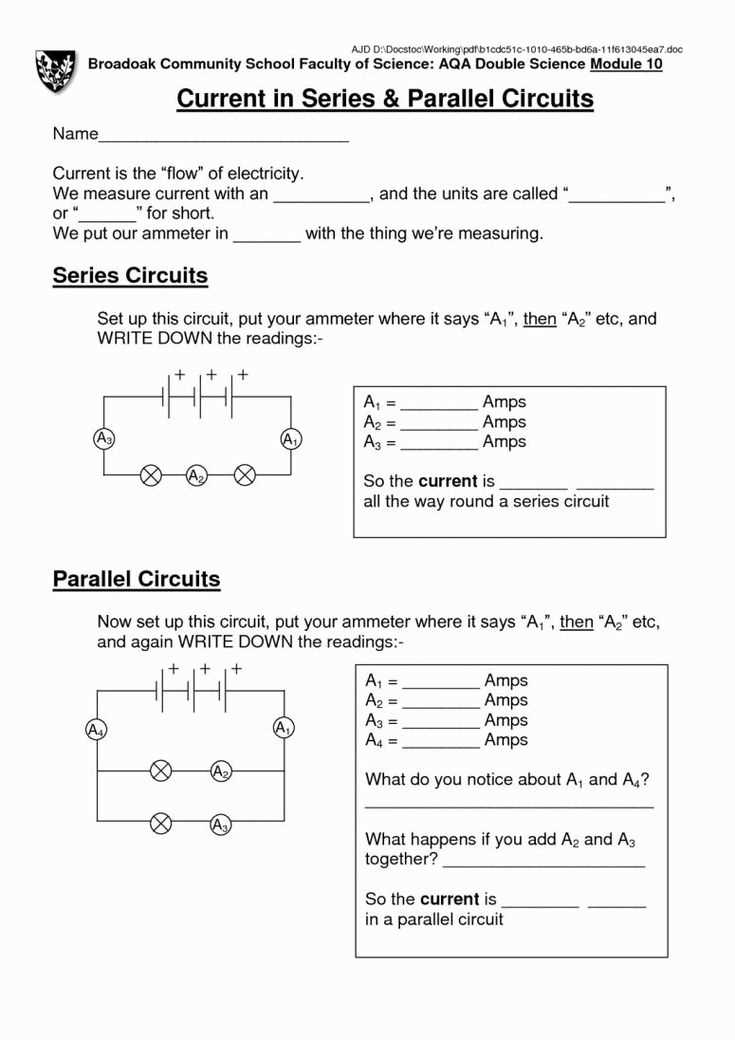

Practice pages like these build speed and accuracy through repetition. Clear diagrams paired with structured questions help students connect symbols, math, and real electrical behavior.
Linear and Branched Electrical Network Practice
Identify the path layout first by counting how many routes charge can follow between the power source and loads. One continuous route signals a chained setup, while multiple branches indicate a split layout.
Label each component with its resistance value and mark connection points before calculating anything. This prevents mixing values that belong to different paths.
Compute current using the total resistance seen by the source, then determine voltage drops across each element using Ohm’s law. Keep calculations in sequence to avoid skipped steps.
Confirm answers by checking physical behavior: current remains the same through a single route and divides at junctions with multiple paths. Any violation points to a setup or math error.
Identifying Chained and Branched Network Diagrams
Trace the route from the power source to the load and back before labeling anything. A single uninterrupted loop signals a chained layout, while junctions that split the path reveal a branched layout.
Count connection points where three or more conductors meet. Each junction indicates current division and confirms a branched drawing rather than a single-loop design.
Check component placement relative to the source. Elements arranged one after another along the same path belong to a chained setup, while elements connected across the same two nodes belong to a branched setup.
Redraw complex figures as simplified sketches with clear nodes and links. This step exposes hidden branches and prevents misreading decorative or crossing lines as electrical connections.
Calculating Current Voltage and Resistance in Each Network Layout
Find total resistance first by examining how components connect. In a single-path layout, add all resistor values directly to obtain the full load seen by the power source.
Determine current using Ohm’s law by dividing supply voltage by total resistance. This current stays constant at every point along one continuous route.
For split-path layouts, calculate equivalent resistance by adding the reciprocals of each branch resistance, then taking the reciprocal of that sum. This result will always be lower than the smallest individual resistor.
Compute voltage drops by multiplying branch current by resistance for each element. Check results by confirming that all drops add up to the source voltage and that branch currents recombine to the original flow.
Checking Answers and Common Calculation Errors in Network Problems
Verify results by applying physical rules before trusting the math. Current must remain the same along a single route and divide only at junctions.
- Total resistance cannot be lower than the smallest resistor in a single-path layout.
- Equivalent resistance in split layouts must be lower than any individual branch value.
- All voltage drops together must equal the source value.
Review units and symbols at each step to catch common mistakes.
- Mixing ohms, amps, and volts within one equation.
- Using branch current where total current is required.
- Adding resistances that should be combined using reciprocals.
Recalculate one step at a time if a rule is violated. This approach isolates errors without restarting the entire problem.
