To solve problems involving geometric figures with proportional sides and angles, begin by recognizing the key relationships between corresponding elements. The fundamental concept to focus on is how one shape can maintain similar characteristics to another when side lengths and angles align according to specific criteria.
Start by identifying pairs of matching angles and side lengths. Once the angles are equal, the remaining task is to check the ratios of the corresponding sides. If they match, the two figures share proportional dimensions, and you can confidently apply relevant rules to solve complex problems.
Understanding and applying the properties of proportionality will allow you to solve real-world problems, such as calculating distances, determining shadow lengths, or working with maps. Mastering these techniques provides a strong foundation for further study in geometry and applied mathematics.
Practice Problems for Identifying Proportional Figures
1. Given two shapes with corresponding angles equal, check if their side lengths are proportional. Use the ratio of the shorter sides to find the missing side length. Solve for the unknown.
2. Determine whether two figures with different sizes are proportional by comparing the ratios of their corresponding sides. If the ratios match, the shapes are proportional. Apply this method to verify the relationship.
3. For two similar shapes, one has a side length of 8 units and the corresponding side on the second shape is 12 units. If the perimeter of the first shape is 40 units, find the perimeter of the second shape by applying the scale factor.
4. In a pair of proportional shapes, one triangle has sides of 4 cm, 6 cm, and 8 cm. The second triangle has a corresponding side of 12 cm. Find the missing side lengths of the second triangle using the proportionality rule.
5. A shadow of a building creates a right triangle. If the height of the building is 20 meters and the shadow’s length is 10 meters, use the properties of proportional triangles to calculate the height of another building casting a shadow of 15 meters.
Identifying Proportional Shapes Using Angles and Side Ratios
To identify two figures as proportional, compare their angles and side lengths. The following methods can help determine this:
1. Check if corresponding angles between two shapes are equal. If the angles match, they have the same shape and proportions. This condition is necessary for proportionality.
2. After confirming the angles are equal, check if the ratios of the corresponding sides are equal. For instance, if one figure has side lengths of 3 cm, 4 cm, and 5 cm, and the other has sides of 6 cm, 8 cm, and 10 cm, the ratio of corresponding sides (3:6, 4:8, 5:10) should be the same.
3. Apply the Side-Angle-Side (SAS) rule. If two sides of one figure are proportional to the corresponding sides of another, and the included angle between them is equal, then the shapes are proportional.
4. Use the Side-Side-Side (SSS) rule. If all three corresponding sides in two shapes have equal ratios, the shapes are proportional. For example, if one shape has sides of 2 cm, 4 cm, and 6 cm, and another shape has sides of 4 cm, 8 cm, and 12 cm, they are proportional since the ratios (2:4, 4:8, 6:12) are the same.
5. Remember, when testing for proportionality, both angle equality and side ratio consistency must hold true. If one condition fails, the shapes are not proportional.
How to Solve Problems Involving Proportionality of Sides
Follow these steps to solve problems that involve the proportional relationship between the sides of two figures:
- Identify corresponding sides: First, make sure you identify the matching sides between the two shapes. Label each side clearly for comparison. Ensure that the shapes are proportional before proceeding.
- Set up a proportion: Use the ratio of corresponding sides to form a proportion. For example, if you are given the sides of one figure as 6 cm and 8 cm, and the corresponding sides of the other figure as x cm and 10 cm, you would set up the proportion as 6/x = 8/10.
- Cross-multiply and solve: Once the proportion is set up, cross-multiply the terms. Using the previous example, cross-multiply to get 6 * 10 = 8 * x, which simplifies to 60 = 8x. Solve for x by dividing both sides by 8. Thus, x = 7.5 cm.
- Check your work: After solving, double-check the ratios to ensure that the sides are indeed proportional. For example, check that 6/7.5 = 8/10 simplifies to the same value.
- Use the result in context: Finally, interpret the solution in the context of the problem. If x represents the length of a missing side, you now have its value and can use it to complete the figure or solve further steps in the problem.
By following these steps, you can confidently solve problems that involve the proportionality of sides in geometric figures.

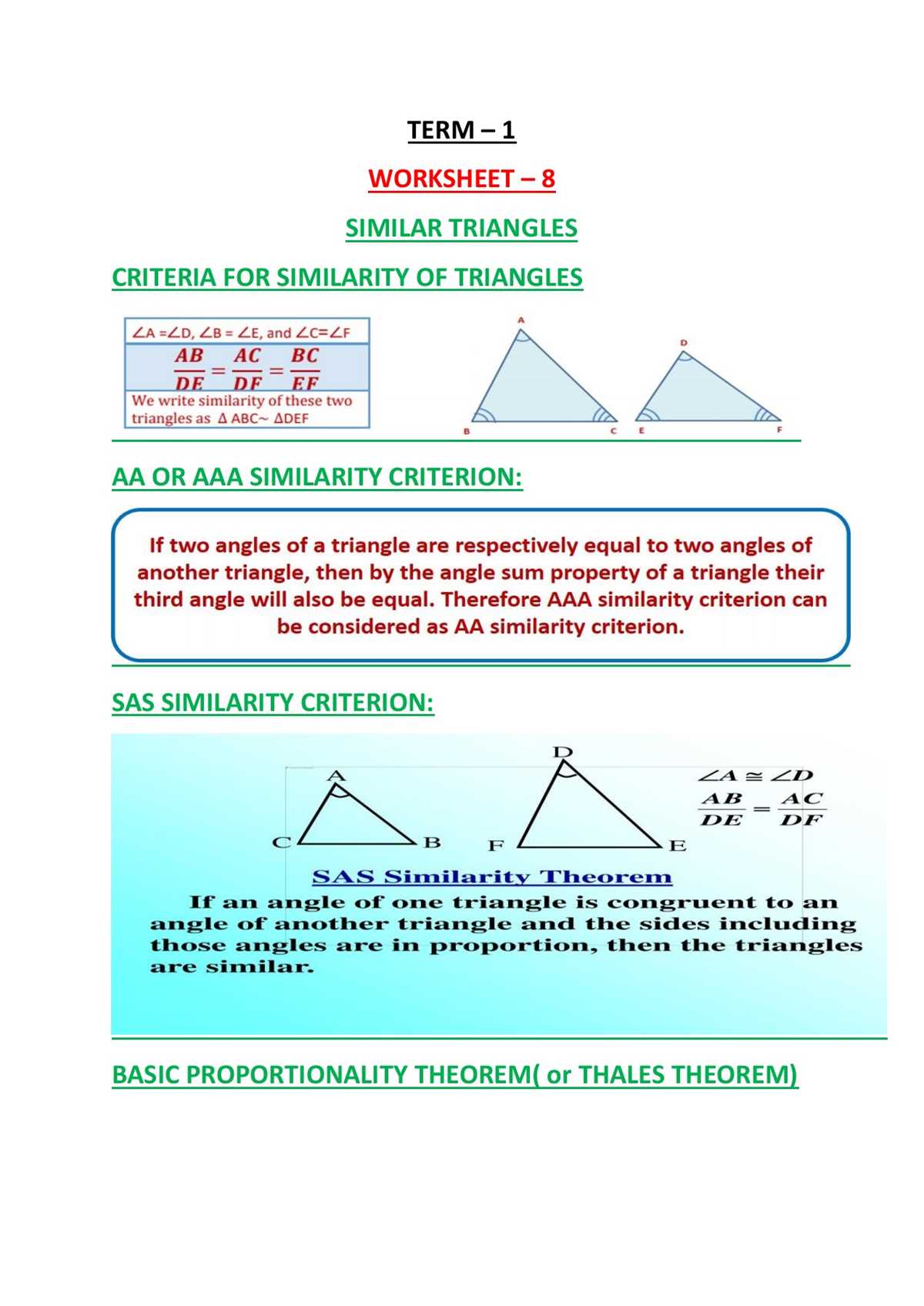

Applying the AA, SSS, and SAS Criteria to Determine Triangle Similarity
Use the following criteria to determine if two shapes are proportional:
- AA (Angle-Angle) Criterion: If two angles of one figure are congruent to two angles of another figure, then the figures are proportional. Check if two angles in one shape are equal to two angles in another, and you can confirm the similarity.
- SSS (Side-Side-Side) Criterion: If the corresponding sides of two shapes are proportional, the figures are proportional. Compare each pair of corresponding sides and calculate their ratios. If the ratios are equal, the shapes are proportional.
- SAS (Side-Angle-Side) Criterion: If two sides of one figure are proportional to two sides of another figure and the included angle between them is congruent, then the figures are proportional. Check the ratio of corresponding sides and ensure the included angle matches.
By applying these criteria, you can quickly determine if two shapes are proportional based on angles and side lengths.
Real-World Examples of Triangle Similarity in Geometry
One common example is in architecture, where building designs often use proportional shapes. For instance, the design of roofs in buildings or bridges may involve shapes with proportional sides, ensuring structural integrity without requiring exact scaling.
Another example can be seen in map reading. When maps are drawn to scale, the shapes of landmarks or geographic features on the map are proportional to their real-world counterparts. If you understand the proportions, you can determine distances and areas based on a few reference points.
In art, perspective drawing relies on proportional relationships. Artists use similar geometric shapes to create the illusion of depth, ensuring that smaller shapes appear as though they recede into the distance, all while maintaining consistent proportions.
In navigation, the use of radar and sonar often involves calculating distances using proportional triangles. These are scaled versions of real-world distances, allowing for accurate tracking and mapping of objects or terrain.
