Use short problem sets that focus on one graph change at a time, such as moving a curve left or up by a fixed number. This approach allows students to connect symbolic rules with visual results on a coordinate plane without distraction.

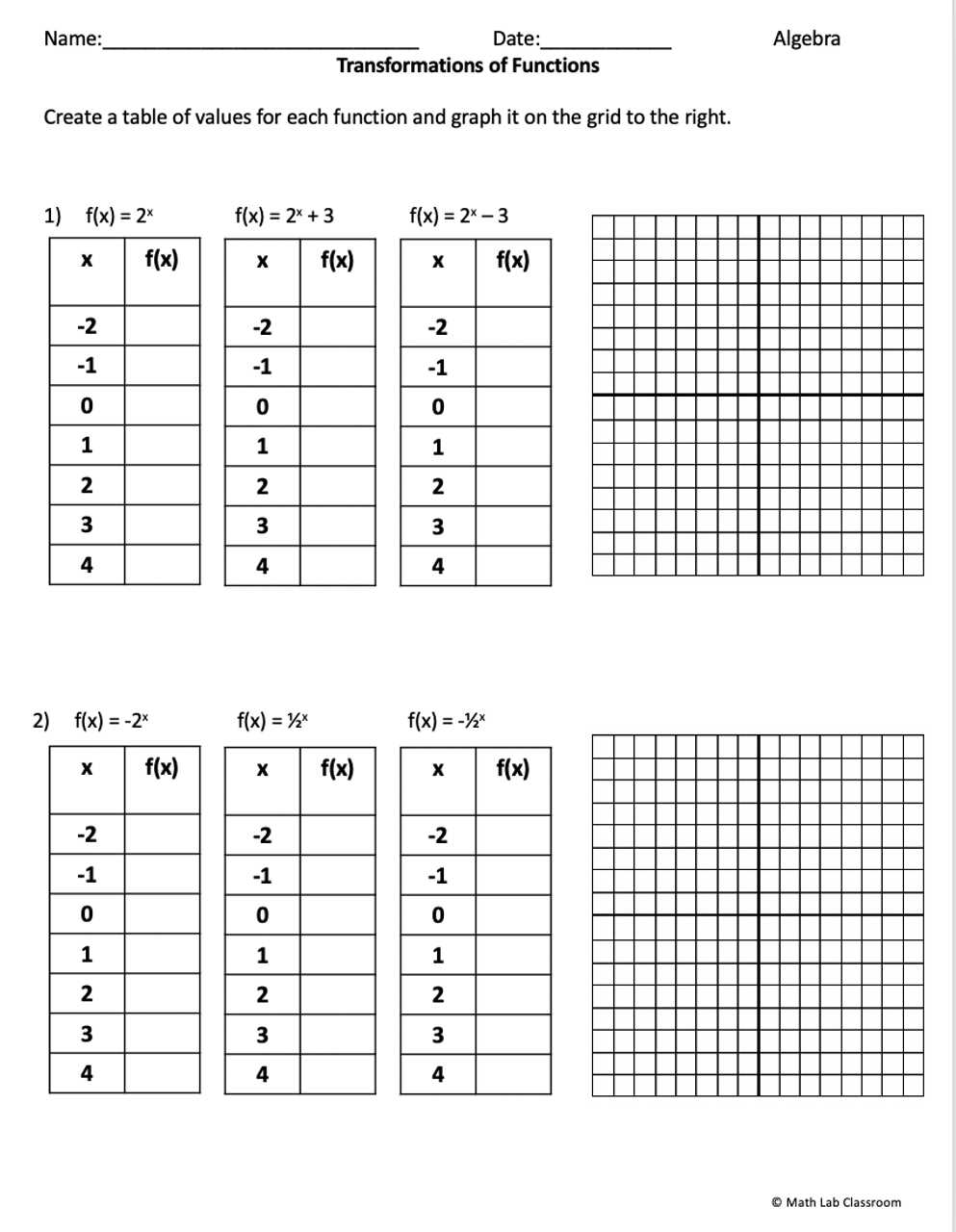

Practice pages should include both equations before and after a modification, paired with blank grids. Require learners to plot key points like intercepts and vertices, then compare how each point shifts based on the numeric adjustment.
Add tasks where multiple changes appear in a single formula, for example a vertical stretch followed by a horizontal shift. Mixing these cases builds fluency with reading expressions and predicting graph behavior through careful analysis rather than guessing.
Answer keys work best when they show completed graphs plus brief notes explaining why each point moved. Clear visual feedback helps students self-check mistakes tied to sign errors, scale confusion, or reversed directions.
Practice Pages for Function Graph Changes in Secondary Math
Use sets of problems that isolate one graph change per page, such as vertical movement, horizontal movement, reflection across an axis, or scale adjustment. Limiting each page to one rule reduces confusion between signs, coefficients, or placement inside the expression.
Each page should present a base formula followed by three to five modified versions. Require students to plot at least four reference points for each case, including intercepts or turning points, to show how numeric changes alter position or shape.
Include both grid-based tasks and table-based tasks. Coordinate tables help learners verify plotted results by tracking how ordered pairs shift after a rule is applied, reinforcing consistency between symbolic work and visuals.
Reserve mixed-problem pages for later practice. Combine two or more graph changes only after single-rule pages show steady accuracy, which prevents pattern guessing and supports careful reading of expressions.
Identifying Horizontal and Vertical Shifts from Given Functions
Read the numeric change outside the formula first, since values added or subtracted after evaluation move the graph up or down. A positive number raises every plotted point by that amount, while a negative number lowers each point using the same scale.
Inspect values placed inside the input next. A number added within the input moves the graph in the opposite horizontal direction, while subtraction moves it toward the same side as the sign. This reversal causes frequent errors if signs are read too quickly.
Confirm each shift using a single reference point such as the origin or a known intercept. Rewrite the formula, substitute the reference input, then compare the new output to the base case to verify direction and distance.
| Form Change | Direction | Distance |
|---|---|---|
| f(x) + 3 | Upward | 3 units |
| f(x) – 5 | Downward | 5 units |
| f(x – 4) | Right | 4 units |
| f(x + 2) | Left | 2 units |
Require written justification beside each graph. A short sentence explaining direction and distance forces careful reading of symbols rather than guessing based on shape alone.
Working with Reflections Across the X Axis and Y Axis
Apply a negative sign outside the formula to flip a graph across the horizontal axis. Each output value switches sign, so points above the axis move the same distance below it, while spacing between points stays unchanged.
Insert a negative sign inside the input to mirror the graph across the vertical axis. Each input value changes sign before evaluation, causing left-side features to appear on the right at equal distances from the center line.
Verify each mirror move using paired coordinates. Take one known point, reverse the sign of its output for a horizontal-axis flip or reverse the sign of its input for a vertical-axis flip, then plot the new location to confirm alignment.
Require comparison of original and mirrored tables rather than visual checks alone. Matching absolute values with opposite signs confirms correct placement and prevents confusion between vertical flips and sideways shifts.
Applying Stretches and Compressions to Parent Graphs
Multiply the entire output by a constant greater than 1 to pull points farther from the horizontal axis. For example, changing f(x) to 3f(x) triples every output value while input positions stay fixed.
Use a constant between 0 and 1 to push points closer to the horizontal axis. Writing 0.5f(x) halves all output distances, creating a tighter shape without altering intercept locations.
Multiply the input by a constant to adjust spacing along the horizontal direction. Replacing x with 2x causes points to cluster toward the vertical axis, while 0.5x spreads them farther apart.
Confirm each adjustment through a short value table. Compare original outputs to modified ones and check whether distances scale by the chosen factor. Matching ratios signal correct application.
Avoid mixing vertical scaling with horizontal scaling in a single step. Apply one multiplier at a time, redraw key points, then proceed to the next change to keep results traceable.
Combining Multiple Transformations in One Expression
Apply changes in a fixed sequence to prevent sign errors: handle input adjustments first, then output scaling, then vertical relocation. For example, rewrite a rule as a·f(b(x − h)) + k and process symbols from inside outward.
- Modify the input term (x − h) to set horizontal relocation; positive h moves the shape right, negative shifts left.
- Apply the input multiplier b next; values greater than 1 compress spacing along the horizontal direction, values between 0 and 1 spread it.
- Scale outputs with a; negative values flip across the horizontal axis, magnitude controls vertical stretch.
- Add k last to relocate vertically; positive raises, negative lowers.
Check results using three anchor points from the base curve. Compute new coordinates step by step and confirm distances change by the stated factors.
- Keep parentheses intact to avoid misreading order.
- Rewrite complex expressions into staged forms before plotting.
- Verify intercepts after each change to catch mistakes early.
Document each step beside the final rule so reviewers can trace how the graph was altered.
Checking Graph Accuracy Using Tables and Coordinate Points
Use a value chart with at least five inputs, including zero, one negative, one positive, and two non-integer values, then plot each ordered pair to confirm curve placement. This exposes sign mistakes and scale drift.
Compute outputs directly from the rule rather than reading from the sketch. Round only at the final step and keep three decimal places during calculation to avoid cumulative error.
Compare horizontal spacing between consecutive points; equal input gaps should reflect expected stretching or compression. Vertical distances between outputs must match the applied multiplier.
Verify intercepts numerically: set the input to zero for the vertical intercept and solve for zeros by checking sign changes across adjacent table entries.
Cross-check symmetry by testing opposite inputs such as −2 and 2. Matching or inverted outputs confirm correct reflection handling.
Replot any point that fails alignment before adjusting the full curve. One incorrect coordinate often signals a single arithmetic slip rather than a flawed rule.
