To calculate the energy output of a renewable energy generator, start by understanding how it transforms mechanical motion into electricity. This process involves several steps, each with specific formulas to estimate power generation. Begin by identifying the generator’s rotor speed, the size of the blades, and the available wind force at the site.
Next, apply the basic formula for power output, which considers factors such as wind velocity and efficiency of conversion. The relationship between the kinetic energy of moving air and its conversion into usable electricity is influenced by the blade’s sweep area and the mechanical system’s ability to capture that energy.
When designing and selecting systems, it’s important to assess site conditions. Variables like the average wind speed, frequency of high winds, and local weather patterns will heavily impact energy production. Additionally, make sure to factor in the system’s capacity to convert energy from motion into electricity, which is often measured in kilowatts or megawatts depending on the size of the system.
Energy Generation Calculation
To assess the energy output of a mechanical energy converter, begin by noting the size of the rotor and the speed at which it turns. Use the formula for kinetic energy conversion: Power = 0.5 * Air Density * Swept Area * Velocity^3. Air density and the swept area depend on the environmental factors, while the velocity of air movement significantly impacts the system’s output.
Efficiency Assessment
The efficiency of energy capture is a key factor. Calculate the percentage of kinetic energy that is successfully converted into electricity. This is typically represented as a ratio of the actual output over the potential output. Efficient conversion methods improve overall system performance, leading to more sustainable energy production.
Site Selection Criteria
When choosing a location for energy generation, several factors must be considered. Key data points include the average annual wind speed, frequency of strong winds, and the overall climatic conditions. Use wind speed measurements to identify whether a site is capable of consistently producing sufficient energy.
Power Output Estimation
Estimate the output of the energy system based on the size and capacity of the blades and the wind conditions. Use the formula to calculate how much energy can be generated at varying wind speeds. This can guide decisions about system scalability and operational costs.
Maintenance and Longevity
Regular maintenance is critical for optimal performance. Track the components such as bearings, blades, and electrical systems for wear and tear. Set up a maintenance schedule based on hours of operation or specific environmental factors, ensuring that the system remains effective over time.
How Mechanical Energy is Converted into Electricity
To convert mechanical energy into electrical power, the rotor blades capture the kinetic energy from moving air. As the air flows over the blades, it creates lift, causing the blades to rotate. This rotational motion is transferred to a shaft connected to a generator.
The generator consists of a rotor and a stator. The rotor is driven by the mechanical energy of the rotating shaft. As the rotor spins inside the stator, it creates a magnetic field that induces a flow of electrons in the surrounding copper coils. This flow of electrons is what generates electrical current.
Once generated, the electricity is in the form of alternating current (AC). It passes through an inverter that converts the AC into direct current (DC) suitable for use in power grids or storage systems. The efficiency of this conversion depends on the mechanical energy input, the design of the system, and the consistency of wind flow.
Power output is determined by factors like blade length, rotor speed, and air density. The larger the swept area of the blades and the higher the wind speed, the more energy can be converted. Energy conversion is more efficient when the system is well-maintained and optimized for local wind conditions.

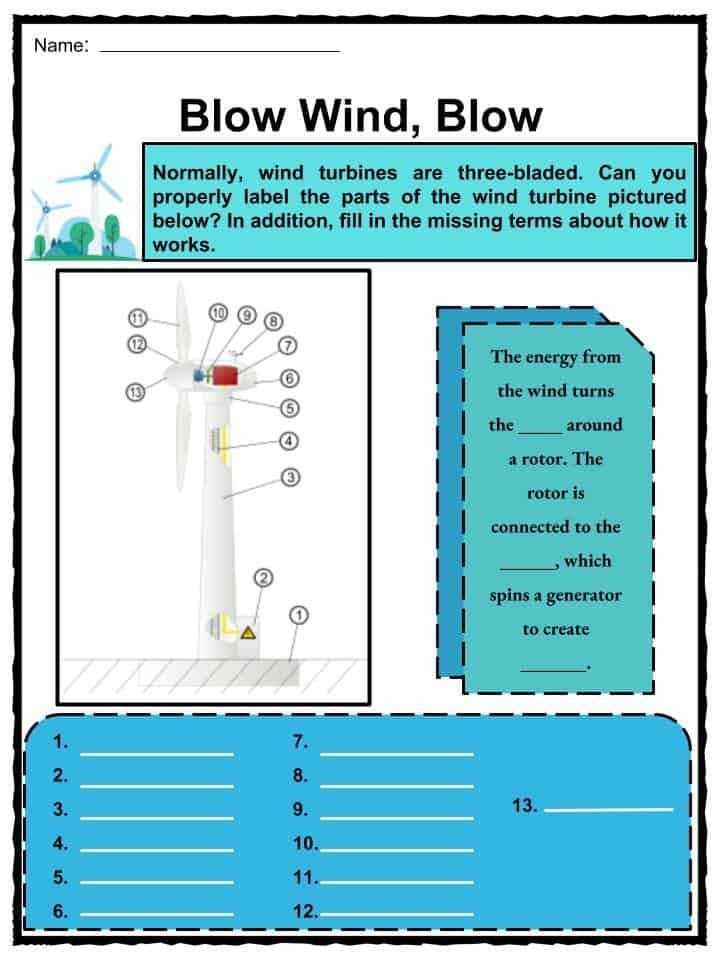

Understanding the Components of a Wind Power System
The primary components of a wind power system include the rotor blades, nacelle, tower, and generator. Each part plays a crucial role in converting kinetic energy into usable electrical energy.
The rotor blades are designed to capture the energy from moving air. These blades are aerodynamically shaped to maximize lift and rotation speed. The length of the blades affects the amount of energy the system can generate; longer blades capture more energy.
The nacelle houses the essential mechanical and electrical components, including the gearbox and generator. It is mounted atop the tower and is responsible for converting the rotational energy of the blades into electricity. The nacelle contains the generator, which is driven by the spinning shaft from the rotor blades.
The tower provides structural support and elevates the rotor blades to greater heights, where wind speeds are generally stronger and more consistent. Taller towers allow for better energy capture by positioning the blades in areas with less turbulence and more steady wind currents.
The generator is the heart of the system, transforming mechanical energy into electrical power. It works by rotating a coil of wire inside a magnetic field, inducing a current. This current is then sent to an inverter for conversion and distribution into the electrical grid.
Common Types of Wind Power Systems and Their Applications
The most common types of wind power systems include horizontal-axis machines, vertical-axis systems, and offshore setups. Each type has distinct characteristics suited for different environments and power generation needs.
Horizontal-Axis Machines are the most widely used type. They have blades that rotate around a horizontal axis, typically positioned on tall towers. These systems are highly efficient and are used primarily in large-scale commercial and utility-grade power generation. Their efficiency makes them ideal for locations with strong, consistent wind patterns.
Vertical-Axis Systems feature blades that rotate around a vertical axis. They are typically smaller and more compact than horizontal-axis systems, which makes them suitable for residential or urban areas. These systems are less dependent on wind direction, making them ideal for regions with highly variable wind patterns. However, they generally offer lower efficiency and are used primarily for small-scale applications or experimental setups.
Offshore Systems are designed for installation in bodies of water, such as oceans or large lakes. These setups take advantage of higher wind speeds found offshore, making them suitable for large-scale power generation. Offshore systems are typically much larger than land-based units and can generate significantly more electricity. They are primarily used by countries investing heavily in renewable energy, such as those in Europe.
Hybrid Systems combine various renewable energy sources, such as wind and solar power, to optimize energy production. These systems are becoming more popular in areas with variable weather conditions, as they allow for continuous power generation regardless of fluctuations in wind or sunlight. Hybrid systems are increasingly used in remote or off-grid locations to ensure a stable power supply.
Steps to Calculate the Energy Output of a Wind Power System
To calculate the energy output, follow these steps:
- Determine the Power Coefficient (Cp) – The power coefficient, Cp, is a measure of the efficiency of the machine in converting wind energy into mechanical energy. This value typically ranges from 0.3 to 0.5 for most systems, with ideal machines reaching up to 0.59 (the Betz Limit).
- Measure Wind Speed – The energy generated depends heavily on wind speed. Measure the average wind speed at the location where the system will operate. Wind speed is often expressed in meters per second (m/s).
- Calculate the Swept Area – The swept area refers to the area covered by the rotating blades. It is calculated using the formula A = πr², where ‘r’ is the radius of the blades.
- Use the Power Formula – The energy output can be calculated using the formula:
P = 0.5 * ρ * A * V³ * Cp, where:
- ρ = air density (approximately 1.225 kg/m³ at sea level)
- A = swept area (calculated above)
- V = wind speed
- Cp = power coefficient
This formula gives the mechanical power produced by the system in watts.
- Convert Mechanical Power to Electrical Energy – To get the electrical energy, you need to account for the efficiency of the generator, typically between 0.9 and 0.95. Multiply the mechanical power by the generator efficiency to find the electrical output.
- Calculate Total Energy Output – Multiply the electrical power by the number of hours the system will operate to get the total energy output over a given period. The result will be in kilowatt-hours (kWh).
By following these steps, you can accurately estimate the energy generated by a given power generation system based on its size and location.
Factors Affecting the Efficiency of Power Generation Systems
Several key factors influence the performance of energy systems that convert motion into electricity:
- Wind Speed – The energy produced is highly sensitive to wind speed. A small increase in speed leads to a significant rise in output. The relationship is cubic, meaning that doubling the wind speed results in eight times the power.
- Blade Design – The length and shape of the blades are critical. Longer blades capture more energy from the moving air. Aerodynamic designs maximize the amount of kinetic energy that can be transformed into mechanical power.
- Rotor Efficiency – The ability of the rotor to convert wind energy into rotational motion is vital. Factors such as the rotor’s speed, torque, and the angle of attack of the blades affect this conversion.
- Generator Efficiency – The conversion of mechanical energy into electrical energy depends on the generator’s design and efficiency. Modern systems use highly efficient generators to minimize losses during conversion.
- Environmental Conditions – Factors such as air density, temperature, and humidity can alter system performance. Colder, denser air provides better energy capture, while high temperatures may reduce efficiency.
- System Maintenance – Regular maintenance ensures optimal performance. Malfunctioning components or wear and tear can lead to significant losses in energy conversion. Proper lubrication, checks, and repairs are necessary.
- Control Systems – Advanced control systems are used to adjust the angle of the blades and the speed of the rotor to maximize energy capture under varying wind conditions. These systems help optimize performance and prevent damage under extreme conditions.
Maximizing the efficiency of these systems requires considering and optimizing each of these factors during the design, operation, and maintenance phases.
