To find the measure of an angle formed by two radii in a circle, use the formula: Angle = (Arc length / Circumference) * 360°. This allows you to determine the angle based on the length of the arc and the full circle’s circumference.
To calculate the length of a sector’s arc, apply the formula: Arc length = (Central angle / 360°) * Circumference. For example, if the angle is 90° and the circle’s radius is 10 cm, you can find the arc length by first calculating the circle’s circumference (2πr) and then applying the formula above.
In practical problems, always ensure the angle is in degrees and the radius is in consistent units. Miscalculations can occur when the radius or angle is not properly converted or used in the correct unit system. Review all data carefully to ensure accuracy.

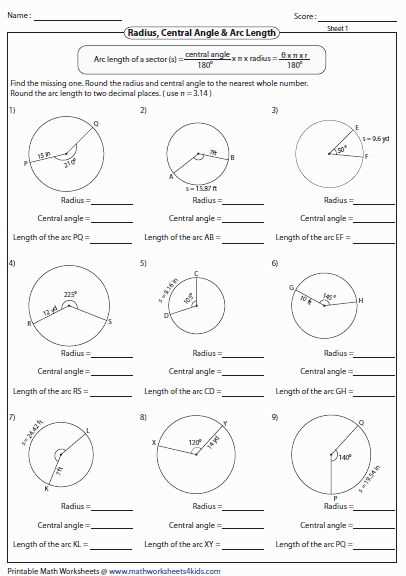

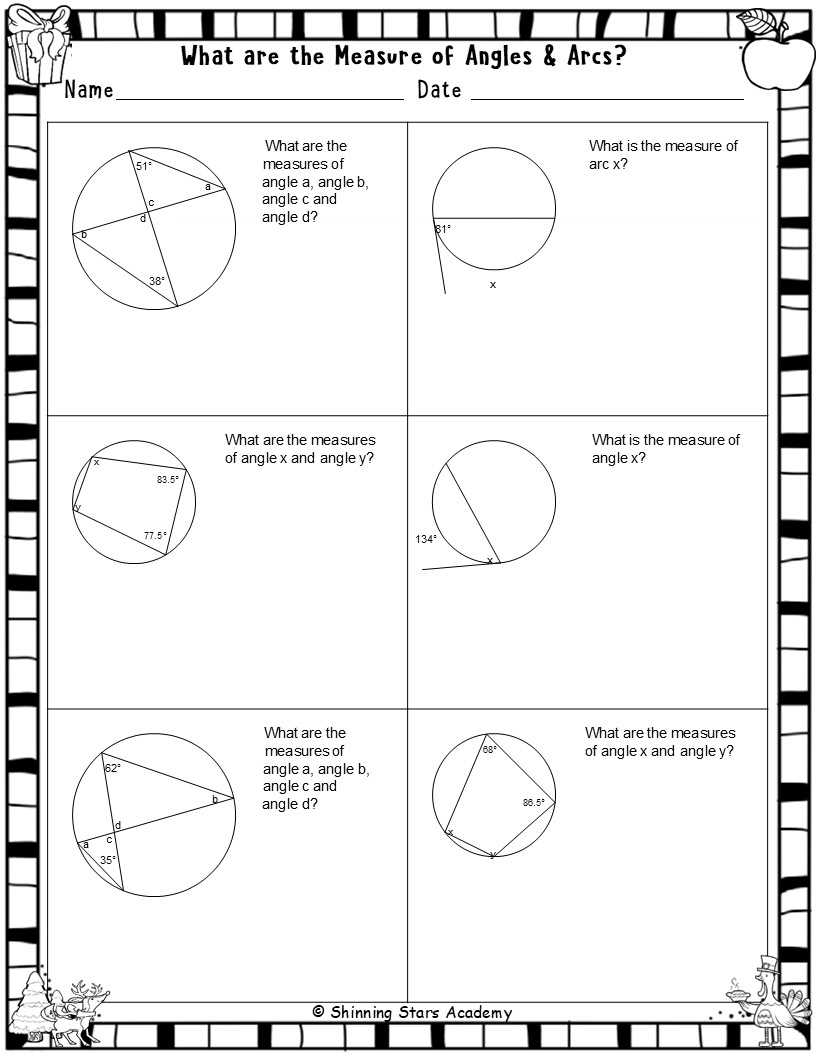

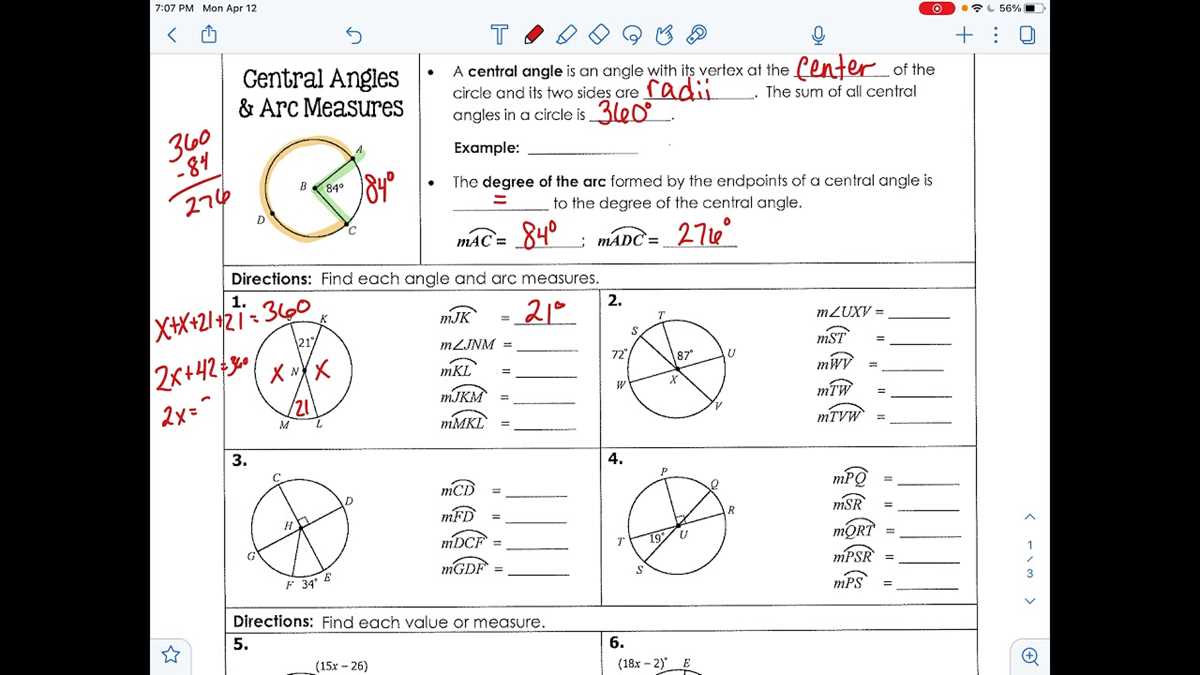

Worksheet on Circular Segments and Sector Measures
To calculate the measure of an angle created by two radii in a circle, use the formula: Angle = (Arc length / Circumference) * 360°. This will give you the degree measure of the angle between the two radii based on the arc’s length and the total circumference of the circle.
To find the length of an arc, use the formula: Arc length = (Angle / 360°) * Circumference. For example, if the circle has a radius of 5 cm and the angle is 60°, first calculate the circumference (2πr) and then use the formula to find the arc length. This is useful for measuring portions of a circle.
Always verify that the angle is in degrees and the radius is in consistent units before performing calculations. Incorrect unit conversions or misinterpretation of data can lead to errors in the results.
How to Calculate the Measure of a Central Angle
To calculate the measure of an angle formed by two radii in a circle, follow these steps:
- Step 1: Find the length of the arc subtended by the angle.
- Step 2: Calculate the total circumference of the circle using the formula Circumference = 2πr, where r is the radius.
- Step 3: Use the formula Angle = (Arc length / Circumference) * 360° to find the angle in degrees.
For example, if the radius of the circle is 10 cm and the arc length is 15.7 cm, first calculate the circumference: C = 2π(10) ≈ 62.83 cm. Then, use the formula: Angle = (15.7 / 62.83) * 360° ≈ 90°.
Ensure the units of the radius and arc length are consistent to avoid calculation errors. This method works for any circle, whether it’s a perfect circle or a segment of a larger structure.
Steps to Find the Arc Length from a Central Angle
To calculate the length of an arc, follow these steps:
- Step 1: Determine the radius of the circle. For example, if the radius is 8 cm, note this value for the next calculation.
- Step 2: Identify the angle of the sector. This should be given in degrees. For instance, if the angle is 60°, use this value in the next formula.
- Step 3: Calculate the circumference of the circle using the formula Circumference = 2πr. For a radius of 8 cm, the circumference is approximately 2π(8) ≈ 50.27 cm.
- Step 4: Apply the formula for arc length: Arc length = (Angle / 360°) * Circumference. Using the angle of 60° and the calculated circumference, the arc length is (60 / 360) * 50.27 ≈ 8.38 cm.
Always ensure the angle is in degrees and the radius is in consistent units. This method will give you the correct arc length based on the circle’s geometry.
Solving Real-World Problems Involving Circular Segments
To find the distance along a curved path between two points on a circle, start by calculating the length of the segment. Use the formula: Arc length = (Angle / 360°) * Circumference. For example, if the radius is 12 meters and the angle between the radii is 90°, first find the circumference using C = 2πr, then apply the formula.
Consider a scenario where you need to determine the distance around a circular track. If the track is 400 meters in total length and you run a quarter of the track, the distance you cover can be calculated as Arc length = (90° / 360°) * 400 ≈ 100 meters.
For designing a circular garden with a specific sector area, calculate the area of the sector using Sector area = (Angle / 360°) * πr². If the angle is 60° and the radius is 5 meters, the area of the sector is (60 / 360) * π(5)² ≈ 13.09 square meters. This method can be applied to any situation involving sectors of a circle.
